Description

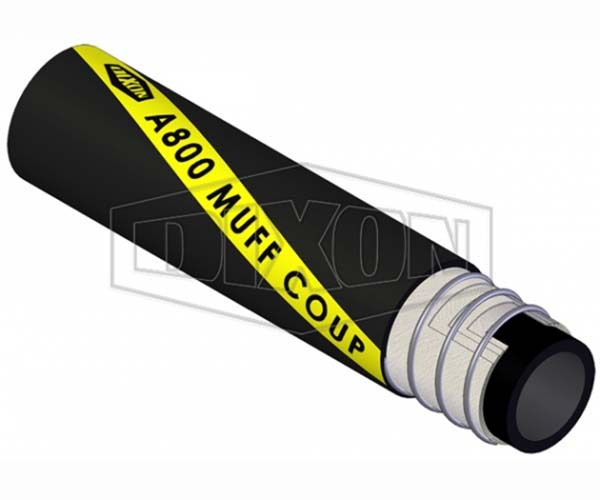

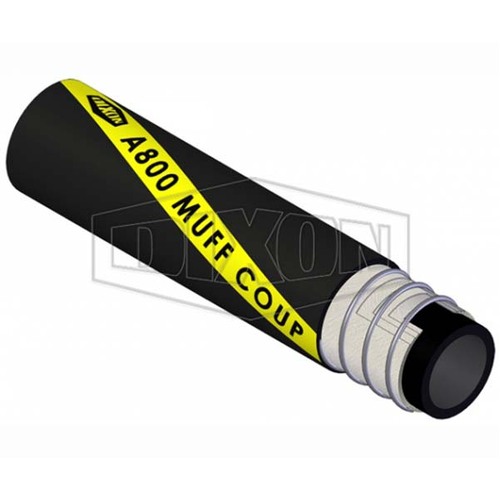

Dixon Rubber Material Handling Muff Coupling Hose

Applications

  • Heavy-duty material handling hose, suitable to handle pressure or suction in the transfer of bulk, slurry, cement, and abrasive products
  • Especially designed for very severe applications (mines, tunnels, etc.)

Construction

  • Tube: NR/SBR
  • Cover: Rubber, yellow stripe, smooth cover
  • Reinforcement: 4 ply synthetic cord; wire helix

Features

  • Ozone resistance
  • UV Stabilised
  • Antistatic copper wire
  • Abrasion Value Max: 70mm³

Available Lengths

  • Cut Length: 5 m
  • Coil Lenght: 20 m

Specifications

  • AIMS SKU A0068585C20
  • Brand Dixon
  • Model Number A800150020
  • Hose Length 20 m
  • Application Slurry & Abrasive Materials
  • Burst Pressure 435 psi
  • Color Black With Yellow Stripe
  • Working Pressure (psi) 145
  • Temperature Range -30°C to 70°C
  • Working Pressure (mpa) 1
  • Weight kg/m 10.7
  • Bend Radius (mm) 1067
  • Hose Outside Diameter (mm) 182
  • Hose Inside Diameter (mm) 152
  • Type Material Handling Muff Coupling Hose
  • Material NR/SBR
SKU: A0068585C20

Dixon 152mm x 20m Rubber Material Handling Muff Coupling Hose Black A800150020

Dixon Rubber Material Handling Muff Coupling Hose

$4,732.56
