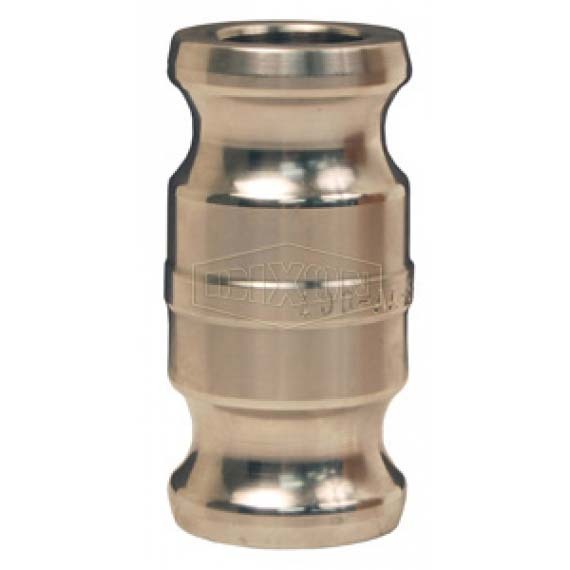

Dixon 100mm 316 Stainless Steel Cam & Groove Spool Adaptor Type AA
Out of stock
316 Stainless Steel construction handles the temperature, pressure and media of industrial duty. Designed for use with liquids. To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. How it works. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter. Safety notes. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F/21°C with a standard seal installed. Dixon 25mm 316 Stainless Steel Cam & Groove Spool Adaptor Type AA 100-AA-Stainless Steel.
Key Specifications
| Size | 12 variants available |
| Maximum Operating Pressure | 250 PSI / 125 PSI / 100 PSI / 75 PSI |
| Material | 316 Stainless Steel |
| Weight | 12 variants available |
Where This Is Used
- Designed for use with liquids.
Features
- To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
- Uncoupling is as quick and simple as coupling.
- Just lift the cam arms and remove the adapter.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
25
Model Number: 100-AA-SS
-
32
Model Number: 125-AA-SS
-
40
Model Number: 150-AA-SS
-
40 x 50
Model Number: 1520-AA-SS
-
50
Model Number: 200-AA-SS
-
50 x 75
Model Number: 2030-AA-SS
-
65 x 75
Model Number: 2530-AA-SS
-
75
Model Number: 300-AA-SS
-
75 x 100
Model Number: 3040-AA-SS
-
100
Model Number: 400-AA-SS
-
100 x 150
Model Number: 4060-AA-SS
-
150
Model Number: 600-AA-SS
