Description

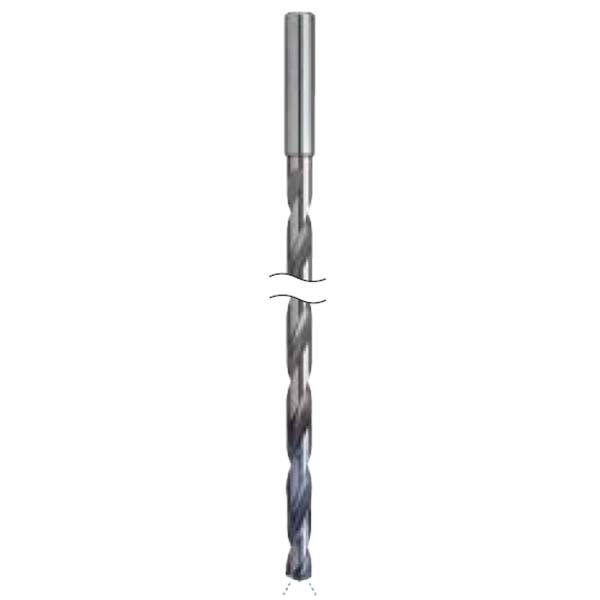

Sutton Tools Carbide Bit - 12xD - R30 - IK

  • Suitable for materials up to 1200N/mm2.
  • A strong core with internal coolant supply.
  • Micro geometry and surface conditioning for optimal chip control.
  • AlCrN for maximum tool life.

Specifications

  • Code: D371
  • Product Group: A0210
  • Material: VHM
  • Surface Finish: AlCrN Tip
  • Application: Up to 1200N/mm2
  • Geometry: R30 - IK
  • Point Type: 135° Form C
  • Point Type: 135° Form C
  • Shank Form (DIN 6535): HA

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-270HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-275HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-300HB
  • Optimal for Steel - High alloy, cast & tool-200HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic-180HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic-160HB

Specifications

  • AIMS SKU A0130689
  • Brand Sutton Tools
  • Model Number D3710300
  • Barcode Number 9311963583617

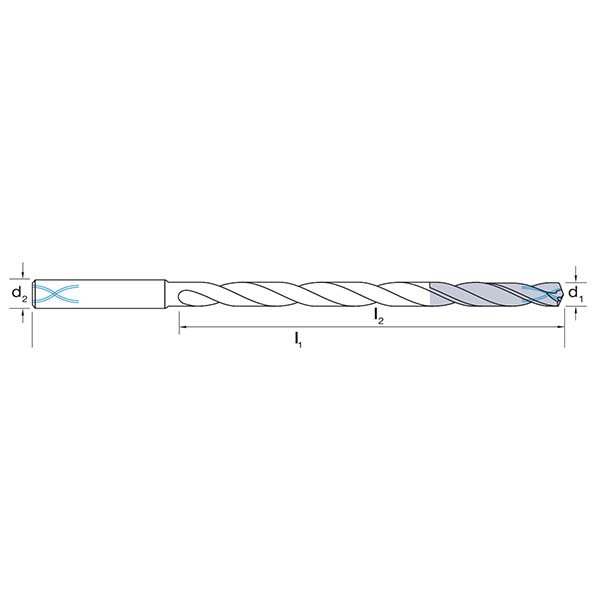

  • Thread Diameter (mm) 3
  • Overall Length (mm) 90
  • Flute Length (mm) 50
  • Helix Angle R30 - IK
  • Shank d2 (mm) 6
  • Point Form 135° Form C
  • Point Tolerance m7
  • Shank Form HA
  • Shank Tolerance h6
  • Type Carbide Drill Bit
  • System of Measurement Metric
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish AlCrN Tip
  • Group Code D371
SKU: A0130689

Sutton D3710300 3mm Carbide Drill Bit - 12xD - R30 IK Carbide AlCrN Tip

Sutton Tools Carbide Bit - 12xD - R30 - IK

$388.40
