Description

Cylindrical Roller Bearings NJ (EG) C3 Clearance

  • Internal Design: High Capacity Design (E).
  • Cage Type: Nylon Molded Cage (G).
  • C3 internal clearance, greater than the normal clearance.
  • Cylindrical roller bearings are designed to have heavy radial load-carrying capacity.
  • Cylindrical roller bearings are commonly separable and easy to mount and dismount.
  • Rolling elements are ground to provide maximum contact with the raceway and are precisely crowned to avoid edge loading due to any shaft misalignments.

About Cylindrical Roller Bearings

  • Construction of this roller bearing type is the simplest of all radial roller bearings.
  • This bearing type is often used in high-speed applications. Because the inner ring, outer ring, and rollers are in line contact, this bearing type has a large radial load capacity.
  • Configurations having integral flanges or loose ribs on both the inner and outer rings can sustain a small amount of axial load.
  • Since this bearing type supports axial loads as sliding action between the end of the rollers and flange faces, axial loading is limited.
  • Double-row Cylindrical roller bearings are used for high-speed, high-accuracy applications such as; main spindle support for lathes, milling machines, and machining centers.
  • Radial clearance of tapered-bore bearings can be adjusted during mounting of the bearing(s) onto the mating journal.
  • Standard cages are pressed steel or polyamide resin.
  • Machined cages of high-strength brass are used for bearings of large dimension or for high-speed applications.

Various Cylindrical roller bearing configurations are:

  • N,NJ,NF,NU,RNU : integral ribs (flanges)
  • NH,NP,NUP,NUH : integral and loose ribs
  • NN,NNU : double-row bearings

Specifications

  • AIMS SKU A0106641
  • Brand NACHI
  • Model Number NJ206EGC3/NACHI
  • Type Cylindrical Roller Bearings
  • System of Measurement Metric
  • Width (b) Mm 16
  • Basic Static Load (N) 37500
  • Bore Diameter x Outer Diameter x Width (mm) 30 x 62 x 16
  • Limiting Speed (rpm) Oil Lubrication 12000
  • Basic Dynamic Load Rating (n) 39000
  • Series No. 200
  • Limiting Speed (rpm) Grease Lubrication 9500
  • R (min) 1
  • Type Cylindrical Roller Bearings
  • Series 300 Series
SKU: A0106641

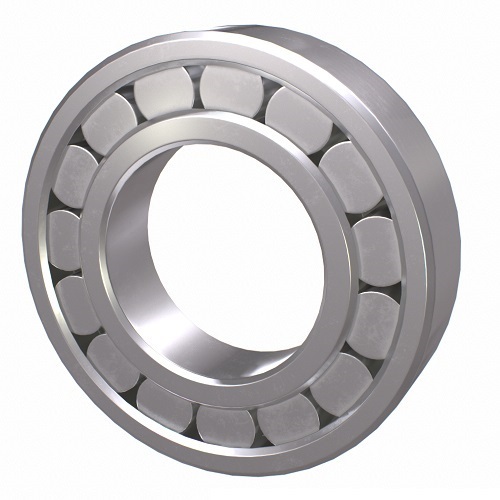

NACHI NJ206EGC3 Cylindrical Roller Bearings 200 Series NJ 30x 62x 16mm

Cylindrical Roller Bearings 200 Series NJ

$49.90
