Description

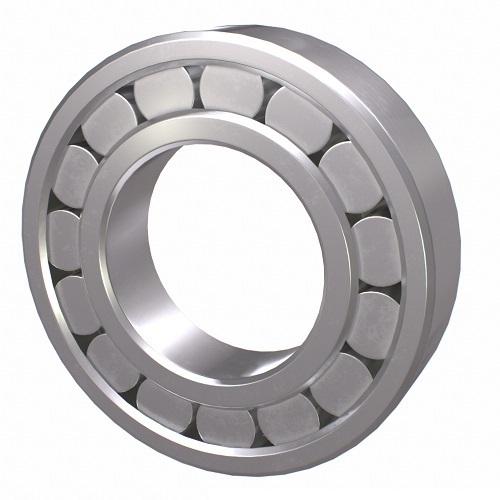

 Cylindrical Roller Bearings

  • Cylindrical roller bearings are designed to have heavy radial load- carrying capacity.
  • Cylindrical roller bearings are commonly separable and easy to mount and dismount.
  • Rolling elements are ground to provide maximum contact with the raceway and are precisely crowned to avoid edge loading due to any shaft misalignments.

Specifications

  • AIMS SKU A0105368
  • Brand NACHI
  • Model Number N210C3/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 50 x 90 x 20

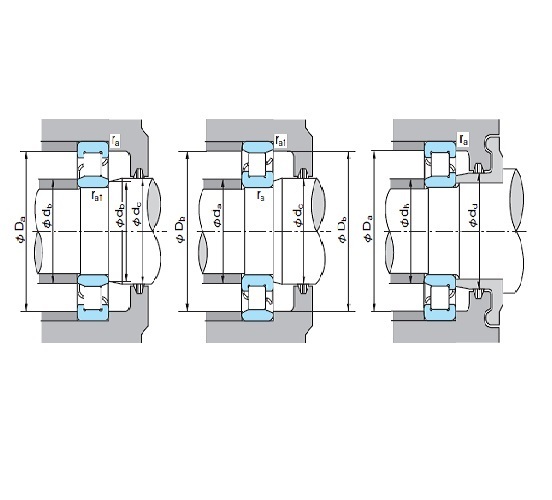

  • Abutment And Fillet Dimension Ra (max) Mm 1
  • Limiting Speed (rpm) Oil Lubrication 8500
  • Basic Dynamic Load Rating (n) 48000
  • Abutment And Fillet Dimension Da (max) Mm 83
  • Limiting Speed (rpm) Grease Lubrication 7100
  • R (min) 1.1
  • Abutment And Fillet Dimension Da (min) Mm 57
  • Basic Static Load (N) 51000
  • Type Cylindrical Roller Bearings
  • System of Measurement Metric
  • Series 200-300
SKU: A0105368

NACHI N210C3 Cylindrical Roller Bearings 200 Series N 50 x 90 x 20mm

Cylindrical Roller Bearings 200 Series N
