Description

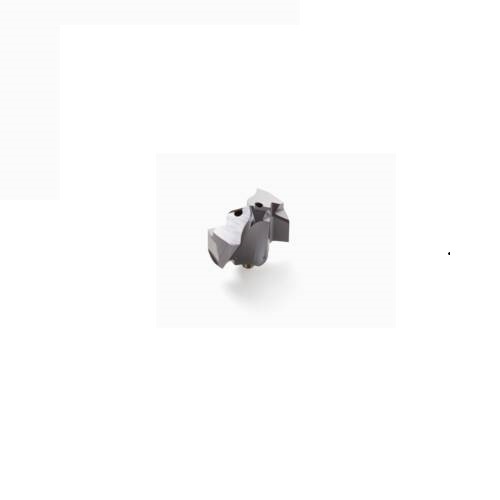

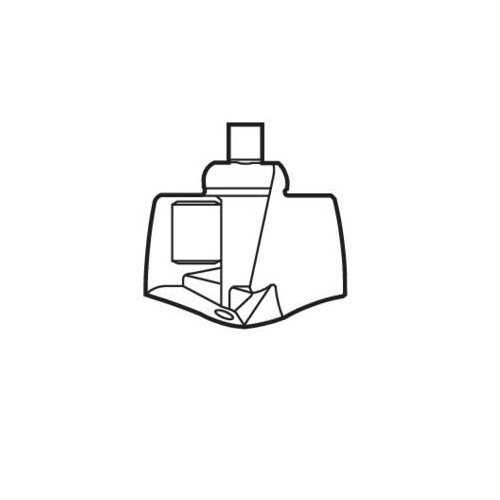

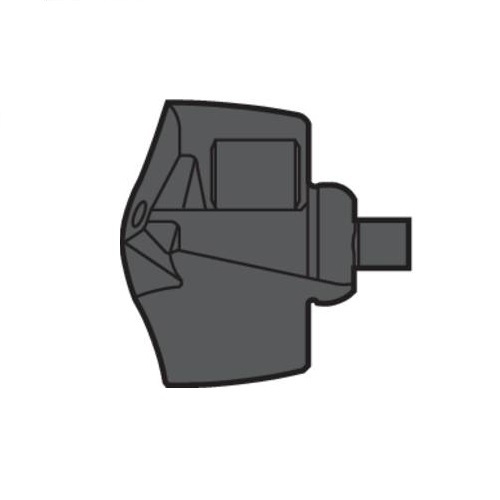

Seco Crownloc™ Plus Crown P - Geometry 12 x 0.12mm Pack of 2 SD400-12.00-P

Crownloc™ Plus Crown P - Geometry (Steel)

  • P geometry crownloc plus.
  • The P-Geometry is a strong and versatile solution that provides reliable operation in applications across a range of different workpiece materials.

All About Crownloc™ Plus:

  • Crownloc™ Plus is a new generation of Seco drills with exchangeable crowns.
  • Featuring a new geometry, coating and locking interface, Crownloc Plus improves chip evacuation and wear resistance in a variety of materials.
  • Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body.
  • The drill’s crowns have a new optimized geometry for improved chip formation and enhanced centering capability.
  • The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micro-grain substrate serve to increase the toughness and wear resistance while reducing the potential for edge build-up.
  • Crownloc Plus provides you with high productivity, excellent chip evacuation, flexibility, and easy handling.
  • These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.

Specifications

  • AIMS SKU A0114041
  • Brand Seco
  • Model Number 2630908
  • Barcode Number 30908026000206
  • Net Weight (kg) 0.005
  • Designation SD400-12.00-P
  • Point Angle (SIG) 140.0 deg
  • Corner Chamfer Angle (KCH) degrees 35.0 deg
  • Cutting Diameter (DC) mm 12
  • Corner Chamfer Width (CHW) mm 0.12
  • Type Crownloc Plus Insert Drill Tip
  • Material Steel
  • Grade Type Carbide PVD
  • Tip Geometry P-Geometry
SKU: A0114041

Seco Crownloc™ Plus Crown P - Geometry 12 x 0.12mm SD400-12.00-P - Pack of 2

Crownloc™ Plus Crown P - Geometry (Steel)

$263.12
