CorrosionX Corrosion Inhibitor, Lubricant & Penetrant

  • CorrosionX® is the most advanced and effective corrosion prevention compound, lubricant and penetrant in the world! Although it may look similar to other oil-based anti-corrosion sprays, CorrosionX utilizes revolutionary Polar Bonding™ and Fluid Thin Film Coating (FTFC™) technologies that together do far more than merely slow down the corrosion process like those so-called 'corrosion inhibitors'.CorrosionX actually disrupts rust and corrosion on the molecular level (displacing it from the metal surface and keeping it from spreading), and provides long-term protection against rust and corrosion on any metal surface.
  • CorrosionX is the only product readily available to the public that meets the U.S. Navy's tough new corrosion prevention and control performance requirement MIL-PRF-81309H.
  • Due to Polar Bonding, CorrosionX causes common metals and metal alloys such as iron, steel, stainless steel, aluminum, copper, brass, bronze, etc. to chemically behave more like noble metals such as gold and platinum, which are highly resistant to oxidation. CorrosionX also has a dielectric characteristic, so not only is it safe on electronics, CorrosionX shuts down electrolysis between dissimilar metals. Use CorrosionX wherever you want corrosion control without paint or wax coatings. A light spray of CorrosionX on power heads, gensets and engines a couple of times a year will keeping them looking like new – even in saltwater and coastal environments.

Physical Characteristics

Color Greenish Brown Volume Solids >92%
Appearance Clear Film Thickness 0.0004"
Odor Fresh Scent pH N/A
Specific Gravity @ 15.6˚C 0.895 Vapor Pressure @38˚C  >1 mm Hg
Viscosity, cSt @ 40˚C 33.2 Solubility in Water Slightly Emulsifiable
Viscosity, cSt @ 100˚C 7.0 Boiling Point >200˚C
Flash Point c.o.c. >132˚C

Weight per gallon

Coverage

7.46 lbs.

Appox. 3,300 sq ft/gal



Performance Properties

Corrosion Protection:

Salt Spry, hrs. >96* ASTM B117
(Film Thickness) 0.19 mils
Humidity Cabinet, hrs. 1320 ASTM D1748



Electrical:

Dielectric Strength >39,000V typ.  ASTM D1748



Lubrication:

Anti-Wear 0.249 mm** ASTM D4172
Friction Coefficient 0.083
Load Carrying Capacity 750 lbs. ASTM 2625 Method B

*Sand blasted mild steel panel. 0 - <1% surface rust
**Note: The smaller the number, the better the performance. A standard lubricating oil of the same viscosity would yield a value of 1.0 - 1.2 mm.

Specifications

  • AIMS SKU A0075641
  • Brand CorrosionX
  • Model Number 90104-CORROX
  • Type Corrosion Inhibitor
SKU: A0075641

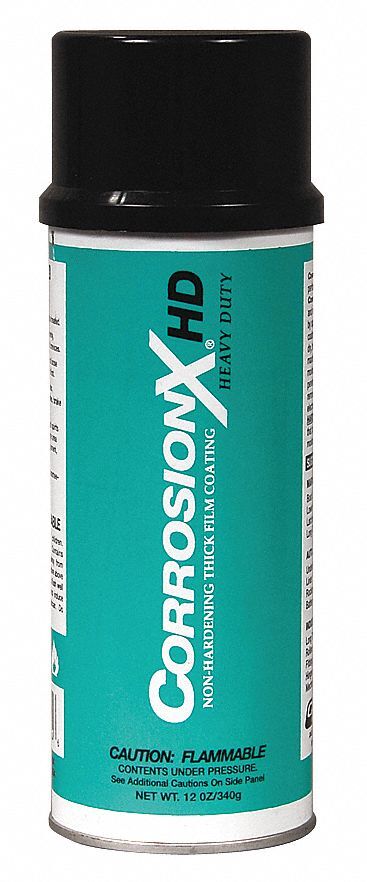

CorrosionX 90104 Heavy Duty Corrosion Inhibitor, Moisture Displacer & Lubricant Aerosol 355ml
