Description

*** JTEKT (formerly Koyo Brand) ***

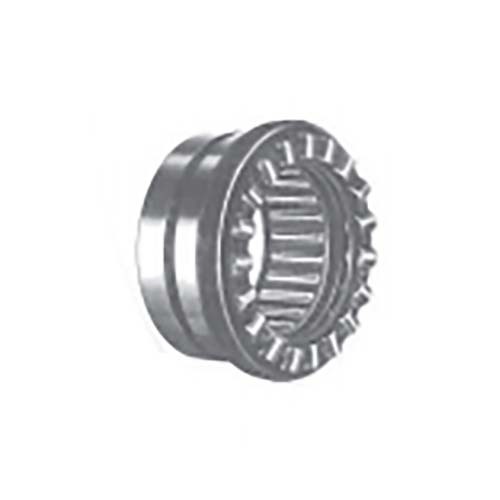

Combined Needle Roller Bearing w/ Thrust Roller (NAXR)

  • Machined outer ring thrust cylindrical roller and radial needle roller bearing.

About Needle Roller Bearing Combined Bearing (Metric Series)

  • Combined bearings consist of a radial bearing (needle roller bearing) and a thrust bearing (ball, roller, or needle bearing).
  • The thrust roller bearing is usually a cylindrical roller thrust bearing.
  • Combined bearings make an effective alternative in place of two separate bearings in terms of cost, handling, and packaging.
  • Combined bearings can be used with or without matching inner rings and thrust washers though these are listed opposite the bearing part numbers, where possible, on the following pages of tables for convenience.

Features

  • Available with ball, needle roller, or cylindrical roller thrust components, machined and drawn outer rings are available, and some sizes are available with integral dust caps.

Benefits

  • An effective alternative to separate radial and thrust bearings.

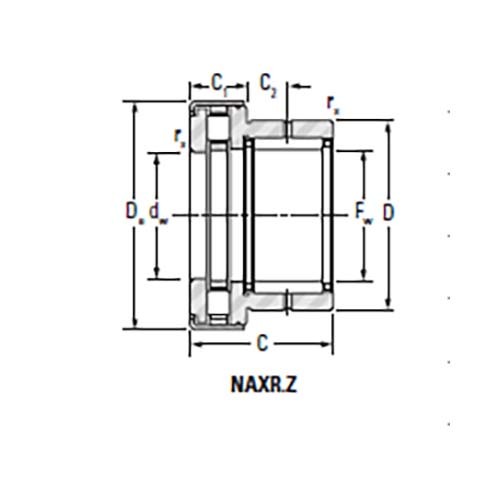

Specifications

  • AIMS SKU A0157505
  • Brand Koyo
  • Model Number NAXR17/KOYO
  • Width (mm) 17
  • Load Rating Thrust Static C0 (kn) 28.6
  • Load Rating Radial Dynamic C (kn) 11.4
  • rs min 0.3
  • Inside Diameter (mm) 25
  • Load Rating Thrust Dynamic C (kn) 12.6
  • C1 9
  • Speed Rating 11000
  • C2 8
  • Load Rating Radial Static C0 (kn) 16.1
  • Dw E7 (mm) 17
  • Outside Diameter (mm) 30
  • D (mm) 26
  • Type Combined Needle Roller Bearing
SKU: A0157505 On Sale

Koyo/JTEKT Combined Needle Roller Bearing w/ Thrust Roller 17 x 30 x 25mm

Combined Needle Roller Bearing w/ Thrust Roller (NAXR)

$113.30
$161.85
