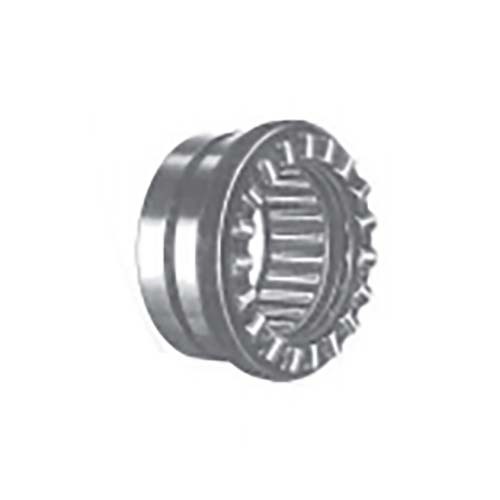

Koyo/JTEKT NAXR20TN Combined Needle Roller Bearing w/ Thrust 20x35x30mm
Regular price
$248.67
Sale price
$248.67
Regular price
Inc. GST
Available
Koyo/JTEKT NAXR20TN. Radial and axial loads in one bearing. Saves shaft length and parts count. Drop-in for combined-load applications. Combined Needle Roller Bearing w/ Thrust Roller solves combined radial-axial loading in a single compact assembly.
Product Specifications. Type: Combined needle + thrust bearing. Loads: Radial + axial. Brand: Koyo.
Key Specifications
| Inside Diameter (mm) | 30 |
Available Sizes
3 sizes available — select the exact size you need from the dropdown above. Key figures for each:
| Outside Diameter (mm) | Width (mm) | Load Rating Thrust Dynamic C (kn) | Load Rating Radial Static C0 (kn) | Speed Rating |
|---|---|---|---|---|
| 35 | 20 | 23.6 | 23.7 | 9500 |
| 42 | 25 | 31.2 | 29.8 | 8000 |
| 47 | 30 | 33 | 34.6 | 6700 |
Where This Is Used
- Combined Needle Roller and Thrust Roller Bearings (NAXR, NAX, NAXK with dust cap) handle radial and axial loads simultaneously in one compact bearing unit, reducing shaft length and component count in gearboxes and machinery.
- General Engineering Combined load gearbox and machinery bearing supply.
- Compact axial and radial load bearing unit replacement.
- Drive and mechanism combined bearing maintenance.
- Automotive and Industrial Vehicle and machinery combined load bearing supply.
- Drivetrain and powertrain combined bearing unit replacement.
- Industrial plant combined radial and thrust bearing maintenance.
Features
- Features.
- Available with ball, needle roller, or cylindrical roller thrust components, machined and drawn outer rings are available, and some sizes are available with integral dust caps.
- Benefits.
- An effective alternative to separate radial and thrust bearings.
Full engineering specifications (all 12 fields, 3 sizes)

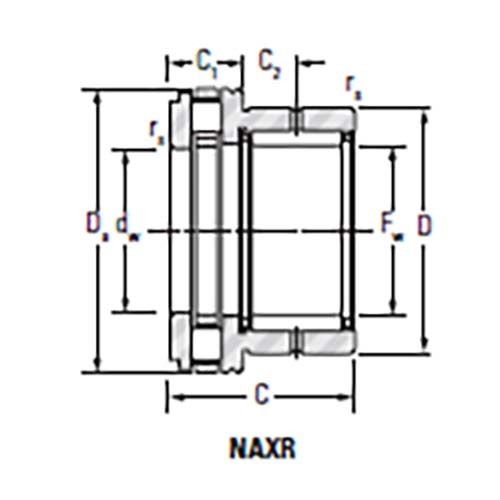

| C1 | Outside Diameter (mm) | Load Rating Radial Static C0 (kn) | C2 | Load Rating Thrust Dynamic C (kn) | Dw E7 (mm) | Speed Rating | Load Rating Thrust Static C0 (kn) | D (mm) | Load Rating Radial Dynamic C (kn) | rs min | Width (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 35 | 23.7 | 10.5 | 23.6 | 20 | 9500 | 56.8 | 30 | 14.8 | 0.3 | 20 |
| 11 | 42 | 29.8 | 9.5 | 31.2 | 25 | 8000 | 81 | 37 | 18.8 | 0.6 | 25 |
| 11 | 47 | 34.6 | 9.5 | 33 | 30 | 6700 | 91.1 | 42 | 20.2 | 0.6 | 30 |
Product Highlights
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
20mm bearing
Model Number: NAXR20TN/KOYO
-
25mm bearing
Model Number: NAXR25TN/KOYO
-
30mm bearing
Model Number: NAXR30TN/KOYO
