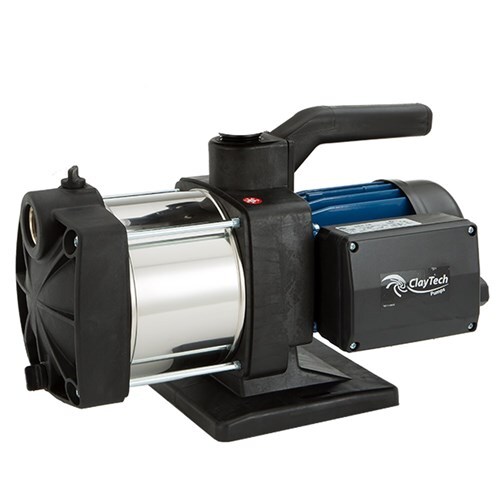

ClayTech CLA INOX230 INOX 230 Surface-Mounted Multi-Stage Pump, 35 m Head

The ClayTech INOX Series surface-mounted pump is a multi-stage, self-priming bare pump with no controller, sold as the INOX 230 (540 W, 35 m maximum head), INOX 240 (720 W, 48 m) and INOX 250 (985 W, 60 m). All three are rated at 100 L/min maximum flow and can self-prime to a depth of 4 m (manufacturer-stated).

Self-priming lets the pump draw from water that is lower than the pump inlet, and the data sheet describes a high-flow, flat, consistent performance curve and quiet operation, for use with above-ground and below-ground rainwater tanks (manufacturer-stated). The pump body is stainless steel with a composite impeller and a carbon/ceramic mechanical seal, and it is rated IPX4 (manufacturer-stated).

The data sheet states that the pump complies with AS/NZS 4020 requirements (manufacturer-stated). These are bare pumps with no automation function (manufacturer-stated); the INOX A Series versions add an Aquatron controller.

Where this product is used

• Drawing from above-ground and below-ground rainwater tanks. (manufacturer-stated)
• Household water supply and pressure boosting. (manufacturer-stated)

Features

• Multi-stage, self-priming to a depth of 4 m (manufacturer-stated)
• Quiet operation with a flat, consistent performance curve (manufacturer-stated)
• Stainless steel pump body and motor shaft (manufacturer-stated)
• Carbon/ceramic mechanical seal (manufacturer-stated)
• Three sizes from 35 m to 60 m maximum head (manufacturer-stated)

Common specifications

Key specifications

All figures in this table are manufacturer-stated. Pump height is 220 mm and width 215 mm for all three.

Selecting the right option

Choose by the head you need: 35 m for the 230, 48 m for the 240 and 60 m for the 250, all at 100 L/min maximum flow (manufacturer-stated). If you want automatic operation, adjustable start pressure and dry-run protection in one package, see the INOX A Series multi-stage pumps with controller.
