ClayTech CLA BLUEVORT 9 BlueVort 9 Submersible Drainage Pump, 200 L/min

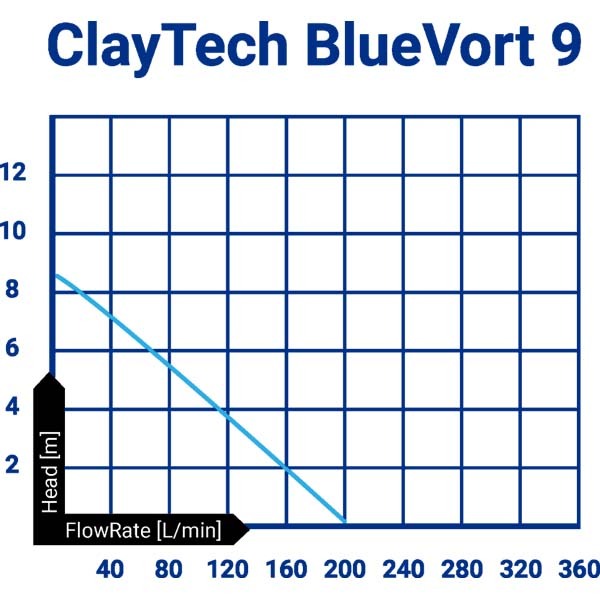

The ClayTech BlueVort 9 is a submersible drainage pump with a flexible float switch, rated at 450 W (P2) with a maximum flow of 200 L/min and a maximum head of 8.5 m (manufacturer-stated). It handles particles below 25 mm (manufacturer-stated).

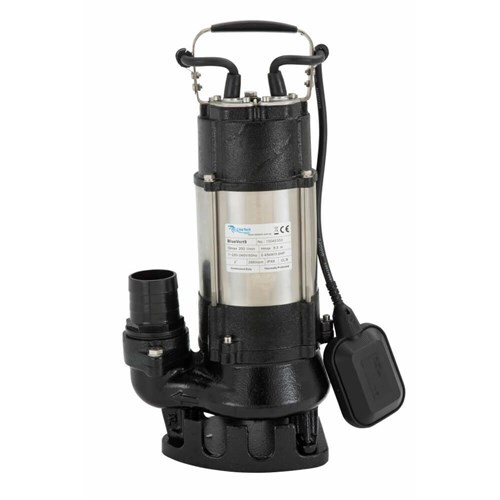

The pump has a single cast iron impeller and a cast iron hydraulic body, dual mechanical seals with a lip seal, a stainless steel carry handle and an industrial grade coating. The outlet is a 2 inch DN universal hose tail (manufacturer-stated). The manufacturer describes it as a multi-purpose submersible pump for drainage and water transfer, and says it is intended for intermittent use (manufacturer-stated).

Where this product is used

• Pumping a grey water tank. (manufacturer-stated)
• Final pumping from domestic water treatment systems. (manufacturer-stated)
• Drainage and water transfer. (manufacturer-stated)

Features

• Float switch for automatic operation (manufacturer-stated)
• Handles particles below 25 mm (manufacturer-stated)
• Cast iron impeller and hydraulic body (manufacturer-stated)
• Dual mechanical seal and lip seal (manufacturer-stated)
• IP68 with a 10 m H07RN-F power cable (manufacturer-stated)

Key specifications

Selecting the right option

The BlueVort 9 is the larger of the two BlueVort pumps. For smaller drainage jobs see the BlueVort 7 drainage pump (135 L/min, 7 m head); for a flow of 320 L/min and solids up to 38 mm see the BVP C11 drainage pump.
