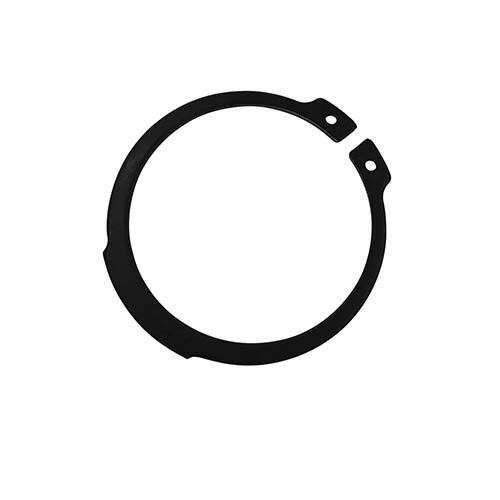

Circlip External - Heavy Duty

  • Heavy Duty Circlip external.
  • A circlip is a fastener or retaining ring consisting of a semi-flexible metal ring with open ends that are snapped into place to permit rotation but not a lateral movement.

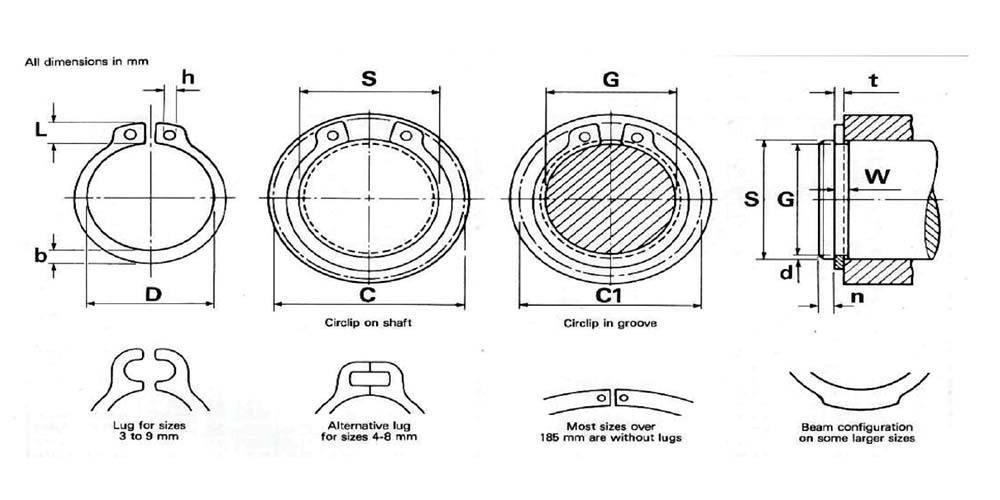

Specifications

  • AIMS SKU A0149986
  • Groove Diameter (G) mm 96.5
  • Lug Hole (h min) mm 3.5
  • Circlip In Groove (C1) mm 116
  • Unstressed Diameter (D) mm 94.5
  • Radial Depth Of Groove (d ~) 1.75
  • Groove Width (W) mm 4
  • Beam Dimension (b) mm 9
  • Circlip In Bore ( C ) mm 120.2
  • Tolerance (t) (+)0.00 (-)0.08
  • Shoulder Length (n) mm 5.3
  • Tolerance (G) (+)0.00 (-)0.35
  • Shaft Diameter (S) mm 100
  • Lug Max (Lmax) mm 9.6
  • Tolerance (D) (+)0.54 (-)1.30
  • Thickness (t) mm 3
  • Tolerance (W) (+)0.18 (-)0.00
  • Type External
SKU: A0149986

Circlip External - Heavy Duty 100 x 4mm

Circlip External - Heavy Duty

$10.34
