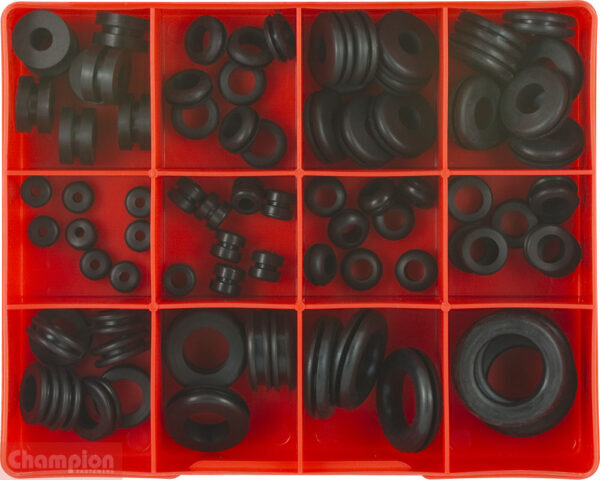

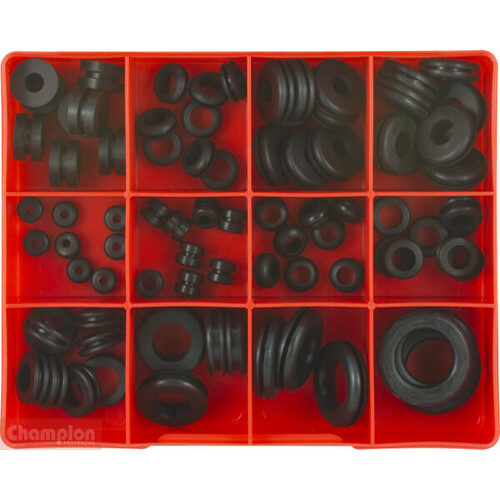

Wiring Grommet Assortment Kit

• Champion wiring grommets protect wires against the rough edges of metal holes commonly found in the industrial field.
• Covering the need for holes sizes 3mm to 23mm.
• Metric
• Rubber
• 12 Sizes: 3mm to 23mm (Wire Hole Size)

Kit Contains

Part Number
Description
Quantity
C63-1
3 (I.D.) x 7 (Hole) x 11 (O.D.) mm
8
C63-2
5 (I.D.) x 8 (Hole) x 11 (O.D.) mm
8
C63-3
6 (I.D.) x 12 (Hole) x 14 (O.D.) mm
8
C63-4
8 (I.D.) x 13 (Hole) x 19 (O.D.) mm
8
C63-5
10 (I.D.) x 12 (Hole) x 17 (O.D.) mm
8
C63-6
10 (I.D.) x 14 (Hole) x 17 (O.D.) mm
8
C63-7
10 (I.D.) x 19 (Hole) x 25 (O.D.) mm
8
C63-8
11 (I.D.) x 19 (Hole) x 25 (O.D.) mm
8
C63-9
12 (I.D.) x 16 (Hole) x 20 (O.D.) mm
8
C63-10
16 (I.D.) x 25 (Hole) x 28 (O.D.) mm
5
C63-11
19 (I.D.) x 24 (Hole) x 33 (O.D.) mm
3
C63-12
23 (I.D.) x 31 (Hole) x 37 (O.D.) mm
3

About Champion Fasteners

• The Champion assortment range is the most comprehensive range of its type assembled in Australia.
• The range has been designed with the specific requirements of the professional automotive and engineering workshop in mind.
• The result is that you get what you need in the right quantity, and most importantly, at the right price.
• The packages are tough, convenient, replenishable, and reusable.
• Champion parts are committed to quality throughout all facets of the organization.
