Champion CA107 Metric Multifit Front Alignment Shim Assortment Kit
Regular price
$131.82
Sale price
$131.82
Regular price
Inc. GST
Available

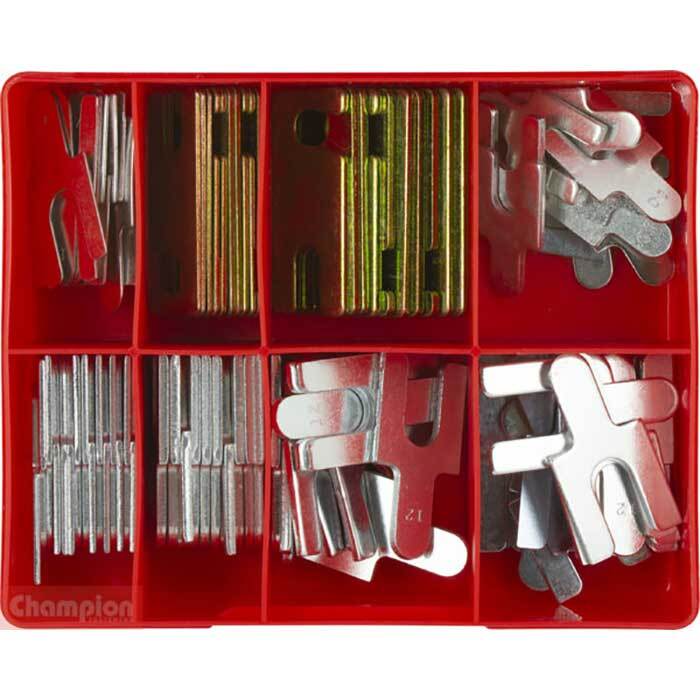

Champion CA107 is a 100-piece metric front-end alignment shim kit, covering M10 to M14 stud sizes across four thicknesses, for correcting camber and caster on vehicles using multifit alignment shims.
Where this product is used
- Front-end wheel alignment — correcting camber and caster by shimming the control arm or trailing arm mounting.
- Automotive suspension and steering geometry adjustment.
- General workshop shimming where a small, precise packer is needed.
Key specifications
| Specification | Detail |
|---|---|
| Type | Front wheel alignment shim — metric multifit |
| Sizes included | 11 (M10–M14, 1–3 mm thickness) |
| Total pieces | 100 |
What's included
| Part no. | Description (qty) |
|---|---|
| C107-1 | M10 x 1mm (5) |
| C107-2 | M10 x 2mm (5) |
| C107-3 | M10 x 3mm (5) |
| C107-4 | M12 x 1mm (10) |
| C107-5 | M12 x 2mm (10) |
| C107-6 | M12 x 3mm (10) |
| C107-7 | M14 x 1mm (10) |
| C107-8 | M14 x 2mm (15) |
| C107-9 | M14 x 3mm (10) |
| C107-10 | 1.5mm suit EA-EL (10) |
| C107-11 | 3mm suit EA-EL (10) |
Selecting the right option
Individual replacement packs (C107-1 to C107-11) are available once the kit runs low on a particular size — quote the part number above for the size you need. Contact AIMS Industrial for pricing on replacement packs.
