Description

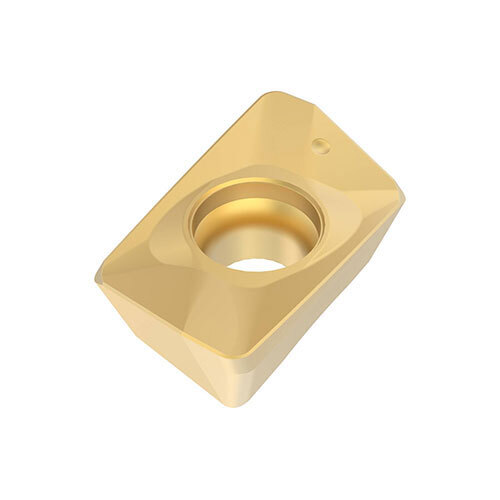

Carbide PVD (D14) Turbo 12 Square Shoulder Milling Insert

  • F30M grade, carbide PVD.
  • PVD (Physical Vapour Deposition).
  • PVD coated grades are recommended for applications with low feed rates where high edge toughness is required.
  • PVD-coated grades are suitable for applications with low to intermediate cutting speed.

F30M Grade

  • Basic grade for Minimaster inserts and thread milling inserts.
  • Also suitable for milling stainless steel, hardened steel, and superalloys.
  • (Ti, Al) N – TiN

About Turbo Square Shoulder Milling

  • Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
  • These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
  • Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
  • Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.

Specifications

  • AIMS SKU A0118867
  • Brand Seco
  • Model Number 52282
  • Barcode Number 52282000001000
  • Designation XOMX120408TR-D14 F30M
  • Grade F30M
  • Insert Width (w1) Mm 8.2
  • Insert Seat Size Code (SSC) XOMX12..
  • Insert Thickness (S) mm 5.07
  • Cutting Edge Count (CEDC) 2
  • Clearance Angle Major) Deg 15.0 deg
  • Corner Radius (RE) mm 0.8
  • Cutting Edge Effective Length (LE) mm 11.6
  • Grade Type Carbide PVD
  • Wiper Edge Length (bs) Mm 1.6
  • Cutting Rake Deg 1 deg
  • Insert Hand (IH) Right
  • Type Chamfer Turbo 12 Milling Insert
SKU: A0118867

Seco 11.6 x 5.07mm F30M 1° Chamfer Mill Turbo 12 Milling Insert XOMX120408TR-D14,F30M Pack of 10

Carbide PVD (D14) Chamfer Mill Turbo 12 Milling Insert

$223.08
