Description

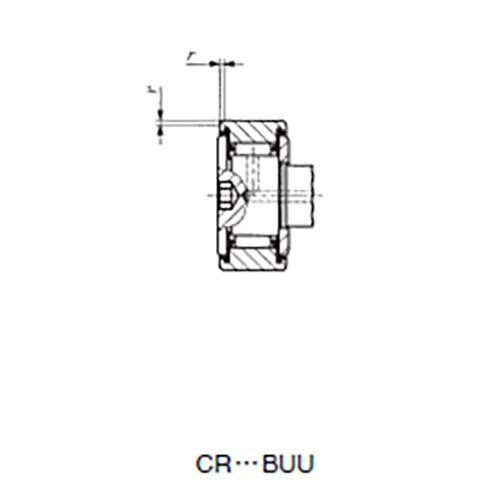

Cam Follower Hex 2RS Cylindrical Outer Ring (CR)

  • Sealed type.
  • Cylindrical outer ring.
  • With hexagon hole.
  • CR, Inch series Cam Follower.

About Cam Follower

  • Cam Followers are bearings with a stud incorporating needle rollers in a thick-walled outer ring.
  • They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
  • They are widely used as follower bearings for cam mechanisms and for linear motions.

About Structure and Features

  • These bearings are designed for outer ring rotation and have superior rotational performance with a small coefficient of friction and high load capacity.
  • As studs already have threads or steps, they are easy to mount.
  • Cam Followers are follower bearings for cam mechanisms and linear motions and have high rigidity and high accuracy.
  • They are, therefore, used widely for machine tools, industrial robots, electronic devices, and OA equipment.
  • Stainless steel-made Cam Followers are superior in corrosion resistance and suitable for applications in environments where oil cannot be used or water splashed, and in clean rooms.

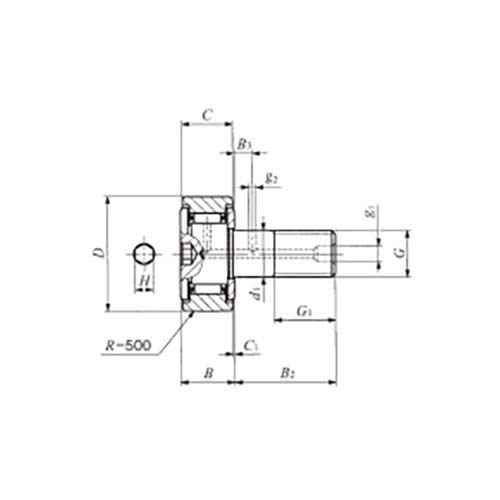

Specifications

  • AIMS SKU A0155921
  • Brand IKO
  • Model Number CR10-1BUU/IKO
  • d1 (mm) 6.35
  • Maximum Tightening Torque N-m 3.4
  • C1 (in) 1/32
  • G1 (in) 5/16
  • Stud Diameter (mm) 6.35
  • Stud Diameter 1/4 in
  • Basic Static Load Rating C0 (N) 3670
  • B Max (mm) 12.5
  • g1 (mm) 7.938
  • C1 (mm) 0.794
  • Mounting Dimension f Min. (in) 29/64
  • R (in) 1/64
  • B2 (in) 3/4
  • G UNF 1/4 - 28
  • B2 (mm) 19.05
  • Width (in) 7/16
  • Basic Dynamic Load Rating C (N) 3650
  • Outside Diameter (in) 5/8
  • R (mm) 0.397
  • C (mm) 11.112
  • Mounting Dimension f Min. (mm) 11.509
  • H (in) 1/8
  • B max (in) 0.49
  • Stud Diameter (inch) 1/4
  • Roller Diameter 5/8 in
  • d1 (in) 1/4
  • Roller Width 7/16 in
  • h (mm) 3.175
  • D (mm) 15.875
SKU: A0155921 On Sale

IKO Cam Follower Hex 2RS Cylindrical Outer Ring 1/4 x 5/8 x 7/16"

Cam Follower Hex 2RS Cylindrical Outer Ring - CR10-1BUU

$20.63
$41.26
