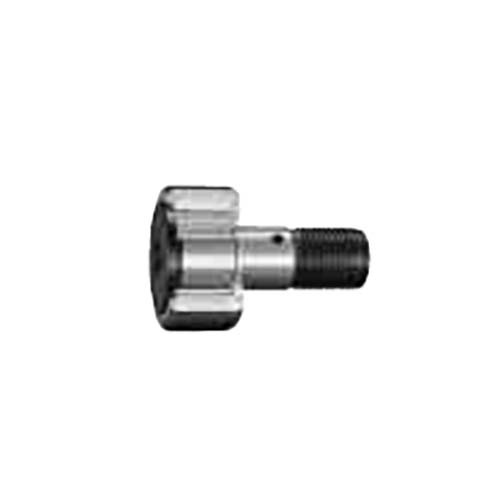

Cam Follower Hex 2RS Crowned Outer Ring (CF)

  • With hexagon hole.
  • Sealed type.

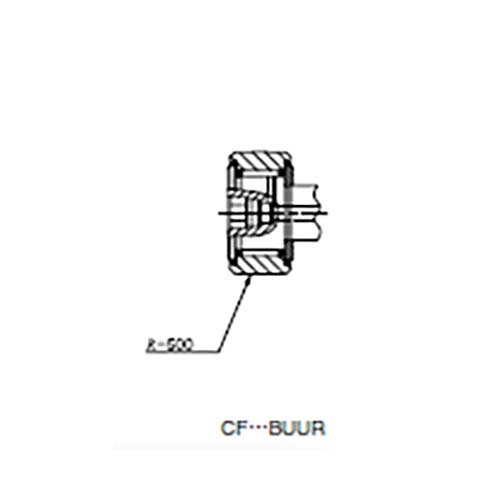

  • With a crowned outer ring.
  • Standard type cam follower.

About Cam Follower

  • Cam Followers are bearings with a stud incorporating needle rollers in a thick-walled outer ring.
  • They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
  • They are widely used as follower bearings for cam mechanisms and for linear motions.

About Structure and Features

  • These bearings are designed for outer ring rotation and have superior rotational performance with a small coefficient of friction and high load capacity.
  • As studs already have threads or steps, they are easy to mount.
  • Cam Followers are follower bearings for cam mechanisms and linear motions and have high rigidity and high accuracy.
  • They are, therefore, used widely for machine tools, industrial robots, electronic devices, and OA equipment.
  • Stainless steel-made Cam Followers are superior in corrosion resistance and suitable for applications in environments where oil cannot be used or water splashed, and in clean rooms.


  • AIMS SKU A0156218
  • Brand IKO
  • Model Number CF10-1BUUR/IKO

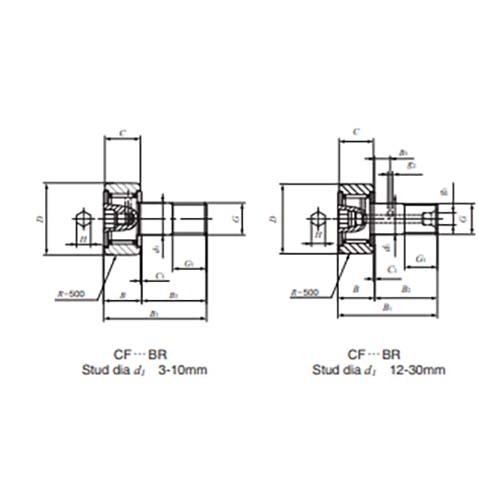

  • D1 (mm) 10
  • Width (mm) 12
  • Stud Diameter 10 mm
  • Basic Dynamic Load Rating C (N) 5430
  • H (mm) 4
  • b (mm) 13.2max
  • rs min (mm) 0.3
  • Maximum Allowable Static Load (n) 6890
  • B3 (mm) 0
  • B1 (mm) 36.2max
  • Roller Width 12 mm
  • g1 (mm) 0
  • C1 (mm) 0.6

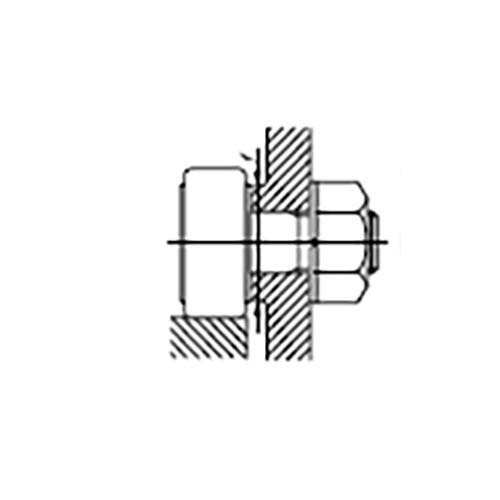

  • Mounting Dimension f Min. (mm) 16
  • Maximum Tightening Torque (n-m) 13.8
  • Roller Diameter 26 mm
  • Basic Static Load Rating C0 (N) 6890
  • Outside Diameter (mm) 26
  • g (mm) M10 x 1.25
  • g2 (mm) 0
  • B2 (mm) 23
  • Type Cam Follower
SKU: A0156218

IKO Cam Follower Hex 2RS Crowned Outer Ring 10 x 26 x 12mm
