Bramley TBHYD-E Electric Hydraulic Thin Wall Tube Bender

Description

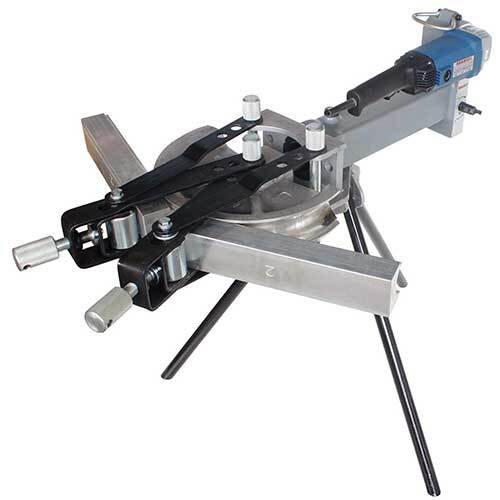

Bramley Electric Hydraulic Thin Wall Tube Bender

Description:

Supplied standard with 1”, 1.1/2” & 2” tube formers. 1” - 2” O.D. capacity and up to 2mm wall thickness in mild steel.
180° maximum bend, so perfect for producing U-bends
Compact Electric/hydraulic ram fitted for ease of use & speed of operation.
Precision machined Tube Slippers & Formers for bend quality
Shipping weight: 73 kg

Model	Tube Former Size	Centreline Radius of Bend
TBHF1	1" (25.4mm)	115mm
TBHF1-1/2	1.1/8" (28.6mm)	115mm
TBHF1-1/4	1.1/4" (31.8mm)	115mm
TBHF1-1/8	1.3/8" (35mm)	140mm
TBHF1-3/4	1.1/2" (38mm)	140mm
TBHF1-3/8	1.5/8" (41.3mm)	140mm
TBHF1-5/8	1.3/4" (44.5mm)	165mm
TBHF1-7/8	1.7/8" (47.6mm)	165mm
TBHF2	2" (51mm)	165mm

Specifications

AIMS SKU A0128820

Brand Bramley

Model Number TBHYD-E

Barcode Number 1942001003507

Type Hydraulic Tube Bender

Bending Angle (degree) 180

Force (ton) 12

Capacity (inch) 1 to 2
