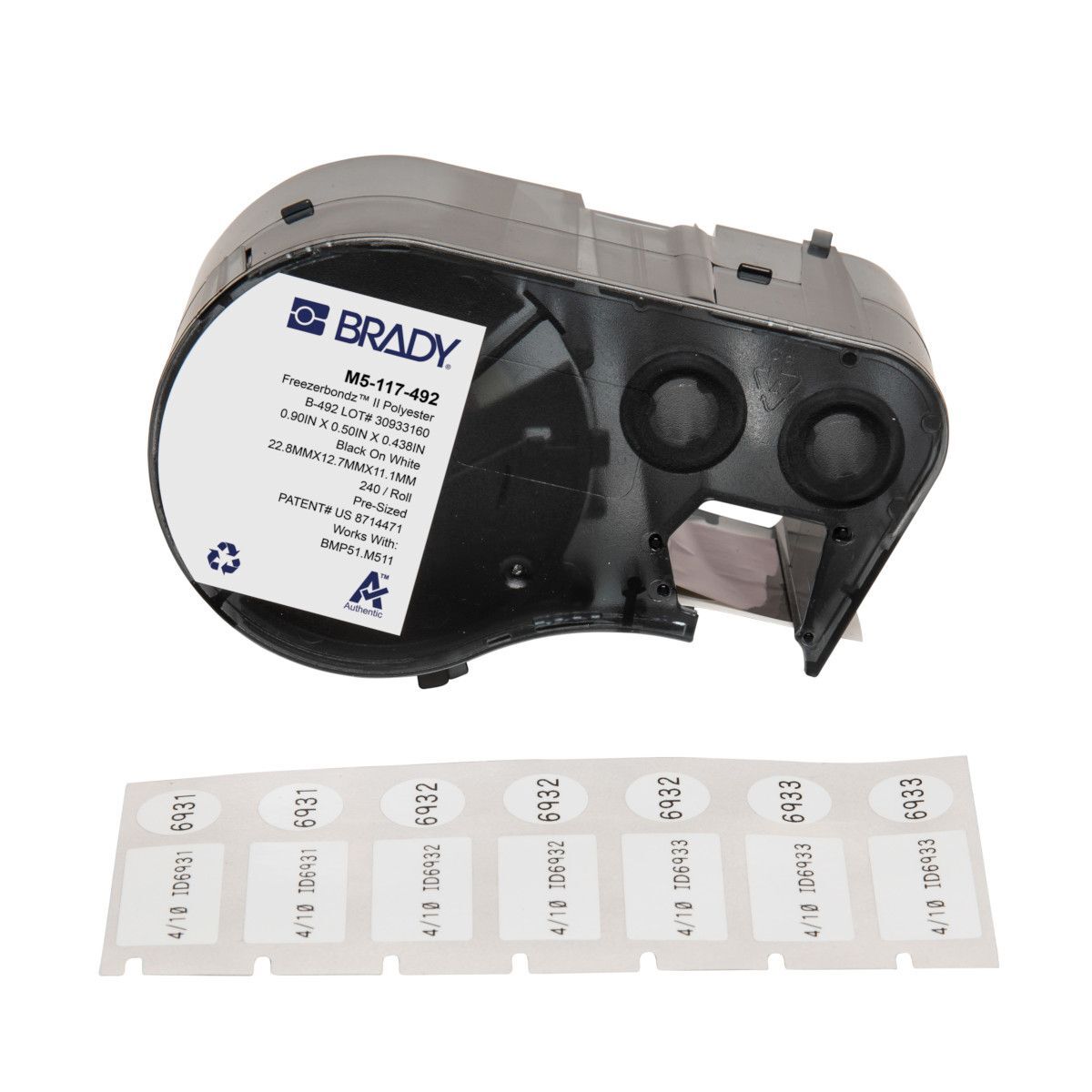

FreezerBondz Ultra-Thin Cryogenic Polyester Label 22.86 x 12.70mm, 11.18mm Dia.
Available
Brady B-492 FreezerBondz ultra-thin cryogenic polyester labels are black on white laboratory labels on cartridges for Brady M4 and M5 label printers. They come as rectangular labels, two round sizes (9.52 and 12.7 mm diameter) and one continuous tape, 12.7 mm wide x 7.62 m (25 ft) (manufacturer-stated).
Brady describes B-492 as an ultra-thin polyester, 0.081 mm thick, with an aggressive permanent acrylic adhesive that can be applied to cold surfaces and suits cryogenic storage. It lists a service temperature of -196 to 110 °C, a minimum application temperature of -196 °C, and freezer, liquid nitrogen and 100 °C hot water bath environments, with chemical and smear resistance (manufacturer-stated). Brady's pages list RoHS compliance to 2011/65/EU. The ribbon is included in the cartridge according to Brady's US page titles.
Printers come from Brady's pages: BMP41, BMP51, BMP53, M410, M510 and M511, though some parts list only the BMP51, BMP53, M510 and M511, so check the printers listed for your part. Brady's pages list these parts as not containing an SVHC under REACH (manufacturer-stated). The Product Code is Brady's part number for each item and the Brady ordering number is shown beside it in the table below.
Where this product is used
- Laboratory labelling of vials and tubes (manufacturer-stated).
- Freezer and liquid nitrogen storage labelling (manufacturer-stated).
Features
- Ultra-thin polyester, 0.081 mm, with an aggressive permanent acrylic adhesive (manufacturer-stated)
- Applies to cold surfaces; suits cryogenic storage (manufacturer-stated)
- Service temperature -196 to 110 °C (manufacturer-stated)
- Rectangular, round and tape formats (manufacturer-stated)
- Ribbon included in the cartridge (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | FreezerBondz polyester (B-492), ultra-thin, 0.081 mm (manufacturer-stated) |
| Adhesive | Permanent acrylic, aggressive, low temperature (manufacturer-stated) |
| Format | Die-cut labels or continuous tape, 1 cartridge with ribbon (manufacturer-stated) |
| Temperature | Service -196 to 110 °C; minimum application -196 °C (manufacturer-stated) |
| Printers | BMP41, BMP51, BMP53, M410, M510, M511 (varies by part) (manufacturer-stated) |
| Approvals | RoHS 2011/65/EU (manufacturer-stated) |
Key specifications
| Product code (Brady part number) | Brady ordering no. | Size | Colour | Labels per cartridge | Barcode (UPC) |
|---|---|---|---|---|---|
| M4-130-492 | 170779 | 9.53 x 20.96 mm | Black on white | 220 | 888434592069 |
| M5-155-492 | 170897 | 6.35 x 31.75 mm | Black on white | 180 | 888434593240 |
| M4-131-492 | 170780 | 12.7 x 25.4 mm | Black on white | 180 | 888434592076 |
| M5-156-492 | 170892 | 25.4 x 22.86 mm | Black on white | 180 | 888434593196 |
| M5-125-492 | 170901 | 25.4 x 44.45 mm | Black on white | 180 | 888434593288 |
| M5-78-492 | 170896 | 48.26 x 25.4 mm | Black on white | 100 | 888434593233 |
| M4-82-492 | 170778 | 9.52 mm dia. | Black on white | 240 | 888434592052 |
| M4-83-492 | 170781 | 12.7 mm dia. | Black on white | 240 | 888434592083 |
| M4C-500-492 | 170777 | 12.7 mm x 7.62 m | Black on white | Continuous | 888434592045 |
Die-cut labels are shown as height x width; tapes as width x length. Sizes follow Brady's pages.
Selecting the right option
Choose the size or format to fit your vial or tube. For matte FreezerBondz labels see the M5 FreezerBondz matte labels, and for vial top labels for M6 and M7 printers see the M6 and M7 FreezerBondz vial top labels. Brady's product pages are written for the US market, so standards or approvals they list may be North American. Ask us if an approval matters for your job.
Related products
Related Brady products: M5 FreezerBondz matte labels, M6 and M7 FreezerBondz vial top labels, M4 and M5 self-laminating cryogenic polyester labels and B-492 FreezerBondz ultra-thin labels.
