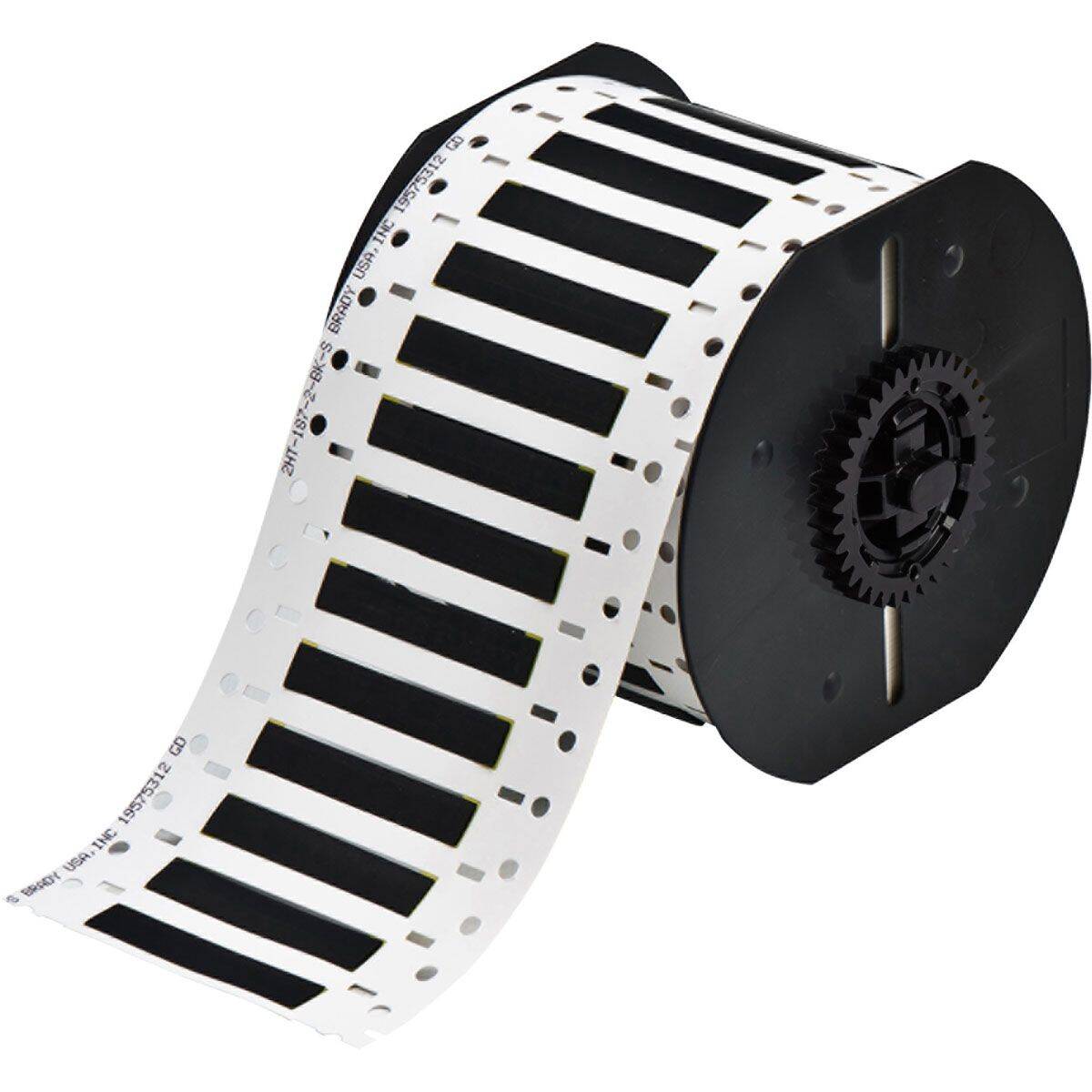

PermaSleeve High Temperature PVDF Wire Marking Sleeve

• PermaSleeve Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications. 2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A.
• Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents.
• Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662;RoHS Compliant;and UL Recognized.
• Operating temperature range of -67 to 437° F (-55 to 225° C).
• A ribbon is required to print this material. Use Part Number B30-R4400-WT.o 120°C).
• A ribbon is required to print this material.

Key Characteristics

• Brady Printer Material Number: B-345
• Trade Name: PermaSleeve
• Finish: Matte

Material Characteristics

• Printer Material: High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
• Material Properties: Flame-retardant, Heat-shrinkable
• Label Properties Heat Shrink
• Maximum Service Temperature (°C): 225 °C
• Minimum Service Temperature (°C): -55 °C
• Adhesive Type: Permanent Acrylic
• Average Outdoor Durability: 2 Years

Printing Specifications

• Print Technology: Thermal Transfer
• Resistance Properties: Chemical-Resistant, Corrosion-Resistant, High Temperature-resistant, Humidity-Resistant, UV-Resistant, Weather-Resistant

Features

• Application: Electrical labelling, Temperature Indicating Labelling, Wire and cable Labelling
• Indoor or Outdoor Use: Outdoor Use

Compatibility

• Recommended Ribbon: B30-R4400-WT
• Printer Compatibility: i3300, BBP33, i5300
• Continuous or Die-cut: Die-cut
