Description

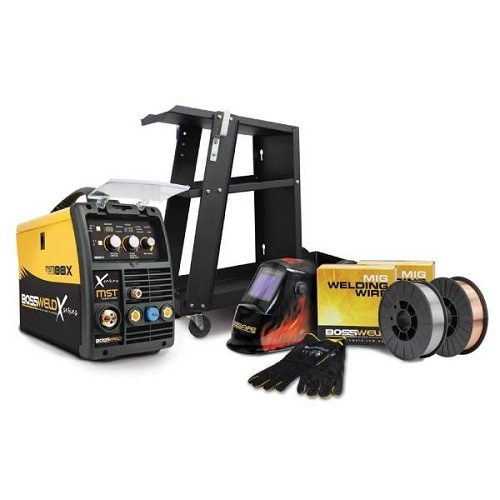

X-Series MST 188X Multi-Process Machine Bundle

  • The Bossweld MST 188X is a lightweight and portable multi-process inverter-based welder.
  • It provides the opportunity to MIG, Stick, and TIG weld from the same machine, making it the ideal choice for your next welding project.

Package Inclusion

  • 1 x MST 188X
  • 1 x Wideview welding helmet
  • 1 x welders trolley,
  • 1 spl x 0.8mm x 4.5kg Gasless GS MIG wire
  • 1 spl x 0.8mm x 5kg Mild Steel MIG wire
  • 1 pr x Bossweld welding gauntlet

Feature

  • 180 Amp output
  • MIG /Stick /TIG welder
  • Fitted 10 Amp plug
  • Digital LED display
  • DC TIG lift arc start
  • Excellent arc stability
  • Gas /gasless operation
  • 2T / 4T trigger latching
  • Stepless amperage control
  • Generator safe
  • Suits D100/D200 spools
  • Spool gun ready

Specifications

  • AIMS SKU A0122121
  • Brand Bossweld
  • Model Number 699188BUNDLE
  • Type Multi Process Machine
  • Protection Class P21 / H
  • I Max TIG 29.5A
  • Output Current Range MIG 40-180Amps
  • Duty Cycle @ 40°c Tig 10% @ 180A
  • Electrode Diameter Range 1.6mm to 3.2mm
  • I Eff MIG/MMA 10A, TIG 9.5A
  • I Max MIG 37.5A
  • Open Circuit Voltage Mig 58.5V
  • Duty Cycle @ 40°c Mma 10% @ 180A
  • Minimum KVA 9
  • Wire Diameter Range 0.6mm to 1.0mm
  • I Max MMA 44A
  • Output Current Range Mma / TIG 10-180Amps
  • Duty Cycle @ 40°c Mig 10% @ 180A
  • Power Supply /Primary Input Power Single Phase, 240V 50-60, HZ +/-15%
  • Thermal Overload Protected Yes
SKU: A0122121 On Sale

Bossweld MST 188X Inverter 10 Amp MIG Stick TIG 3 in 1 Welder Bundle 240 Volt

X-Series MST 188X Multi Process Welding Machine Bundle

$873.00
