Bossweld Dinse Panel Connector Female 25 mm (Pack of 2) | 500075
Available

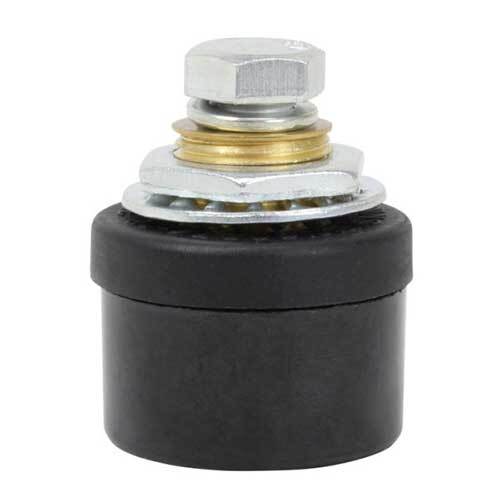

The Bossweld Dinse Panel Connector Female is a panel-mounted Dinse-style socket, supplied in a pack of 2 in sizes 25 and 50. It is used to replace the output sockets on welders, generators and battery applications.
The casing is heavily insulated and the fitting is solid machined brass, which improves the conductivity of the lead. It is easy to install, and the twist-lock action gives a secure, locked connection.
Where this product is used
- Replacing the output sockets on a welder
- Output sockets on generators and battery applications
- Workshop and site welding
Features
- Panel-mounted Dinse-style socket
- Solid insulated brass connection
- Easy to install
- Replaces output sockets; pack of 2
Key specifications
| Specification | Detail |
|---|---|
| Type | Dinse Panel Connector Female |
| Sizes | 25 and 50 |
| Material | Machined brass, insulated casing |
| Pack quantity | 2 |
Options and part numbers
| Option | Part number | Size |
|---|---|---|
| Size 25 | 500075 | 25 |
| Size 50 | 500076 | 50 |
Selecting the right option
Match the size to your Dinse plugs and cable. The plug and the cable-mount female connector are listed separately. If you are unsure what suits your set-up, contact AIMS with the brand and model of your equipment.
