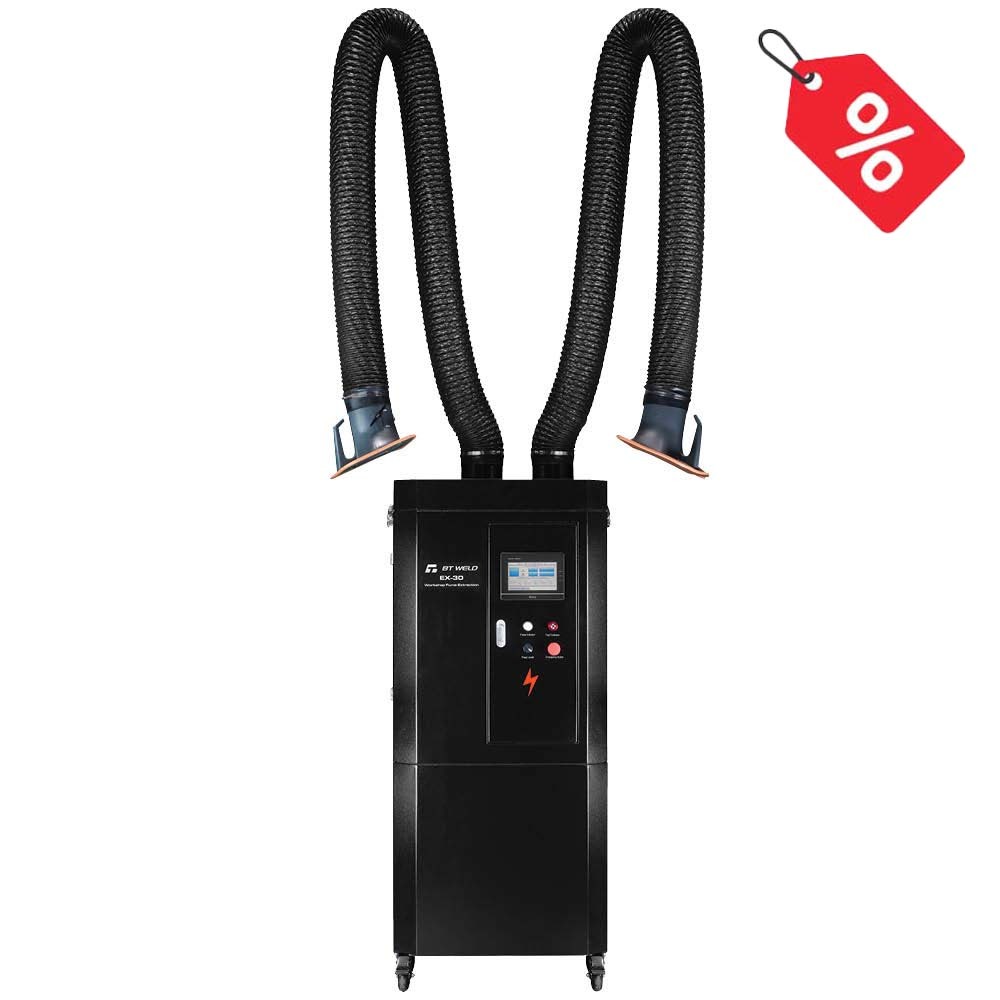

BT Weld Workshop Fume Extraction Unit

• The BT Fume Extractor is your essential welding companion, designed to safeguard your health and enhance your workspace.
• This powerful and efficient unit effectively captures harmful fumes, smoke, and particulates generated during the welding process, preventing them from contaminating your environment.
• 7" colour touchscreen
• Automatic clean dust
• 360º Rotation Arm
• Aluminium Micro-Mesh Filter
• Superior Filtration: Equipped with advanced filtration technology to remove even the finest particles, ensuring clean and breathable air.
• Powerful Extraction: High-performance motor efficiently draws in and expels fumes, creating a healthier welding environment.
• Portability and Flexibility: Compact and lightweight design allows for easy movement between workstations.
• Durable Construction: Built to withstand the rigors of industrial use, ensuring long-lasting performance.

Technical Data

• Power Supply: 415V or 415V/50Hz 3 Phase
• Noise Level In Field: ≤ 85 db
• Clean Dust Method: Automatic Reverse Blowing
• Maximum Pressure: 1700 pa
• Compressed Air: 0.4 - 0.6 Mpa
• Flexible Arm Size: Ø 150x3000mm
• Filter Size: Ø 325x660mm
• Dimensions: 700x760x1460mm
• Weight: 200±10 kg

Filter Specification

• Filter Stages: 3
• Filter Method: Cartridge filter
• Type Of Filter: Filter Cartridge
• Filter Material: Pre-Coating Polyester
• Filter Efficiency: 99.97%
• Filterclass: MERV17
• Additional Filters: Pre-Filter
