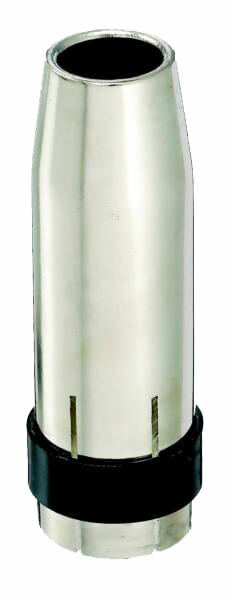

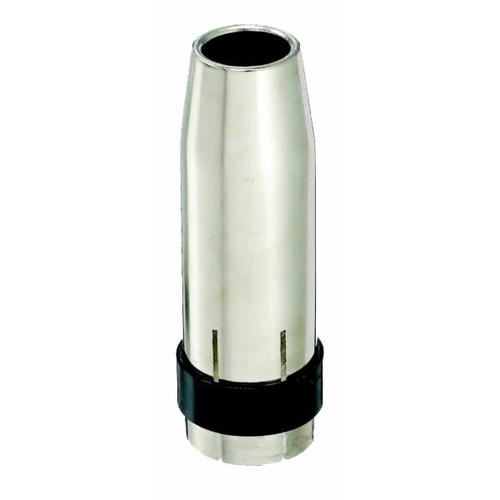

Bossweld Binzel 24 Style Adjustable Conical Nozzle 12.5 mm (Pack of 2) | 92.02.24.CO

Bossweld Binzel 24 Style Adjustable Conical Nozzle 12.5 mm fits Binzel 24 style MIG torches. It is a 12.5 mm standard adjustable conical nozzle, supplied in a pack of 2.

The nozzle directs shielding gas around the weld pool to protect it from the atmosphere, and it shields the front end of the torch from spatter and heat. A conical nozzle tapers towards the tip, which improves access and visibility in tight joints.

Where this product is used

• MIG welding with a shielding gas, with the nozzle sized to the joint
• Replacing a damaged or spatter-clogged nozzle on your existing torch
• Keeping a spare set for production welding

Features

• Binzel 24 style MIG torches
• Shape: Adjustable conical
• Nozzle diameter: 12.5 mm (standard)
• Supplied in packs of 2

Key specifications

Selecting the right option

Choose the nozzle to match your torch style, insulator and diffuser, and pick the diameter for the job: a larger nozzle gives wider gas coverage for higher-current welding, and a smaller one gets into tighter joints. Spatter that builds up inside a nozzle restricts gas flow and can cause porosity, so clean nozzles regularly and replace them when they are damaged or heavily worn. If you are unsure which nozzle your torch takes, contact AIMS with the torch model before ordering.
