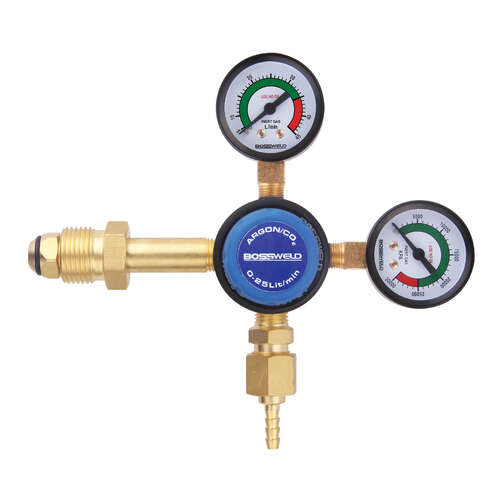

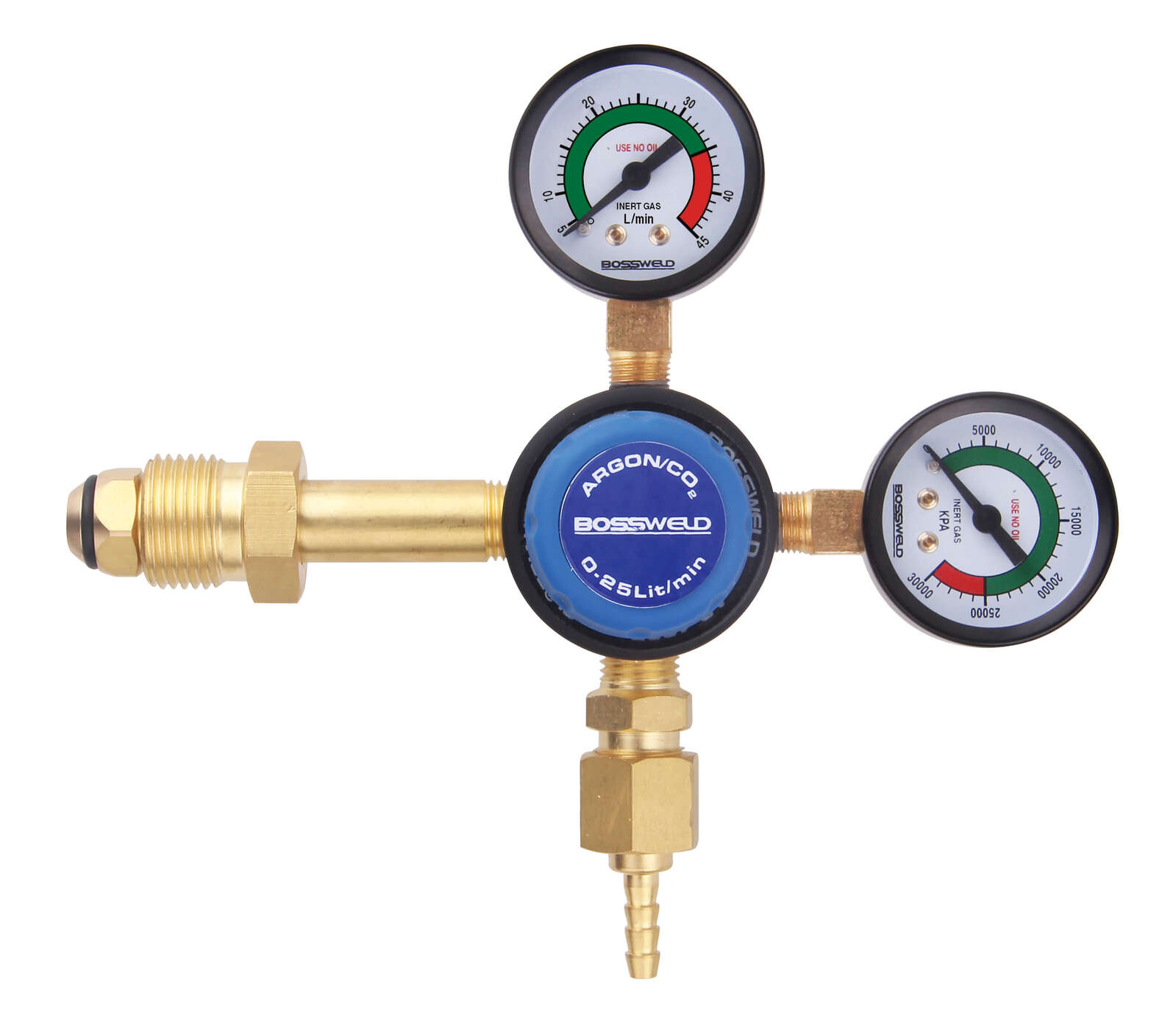

Bossweld Argon Dual Stage Regulator

• Bossweld Dual Stage Argon regulators are designed for use with TIG and MIG welding processes.
• Advantage of a dual stage regulator is its ability to deliver a constant pressure, even with a decrease in inlet pressure (cylinder content), giving the welder an accurate and precise flow control.
• The first stage delivers a constant pressure into the regulator.
• The second stage performs like a single stage regulator would, except with the benefit of the delivery pressure being relatively constant.
• The reduction in pressure created by the first stage reduces the final delivery pressure that saves on average 15% gas and money.

Gas Service
Argon - Dual Stage
Part No.
400209T (Side Entry)
Maximum Inlet Pressure
20,000 kPa
Outlet Pressure
0 - 25 L/min
Inlet Connection
Type 10 - AS 2473
Outlet Connection
5/8 - 18 UNF Right Hand Male
Colour Coding
Blue
Manufactured Testing
Complies to AS 4267
Body
Brass
Standard
AS 4267
Packaging
Cardboard Box
Packaging Dimensions
W - 120mm / D - 110mm / H - 140mm
Nett Weight
0.80kg

Features

• Easy to read colour coded gauges
• Consistent gas flow
• Precise flow rate delivery
• Reduce gas wastage
• No soldered joints, safety relief valve
• Side Entry
