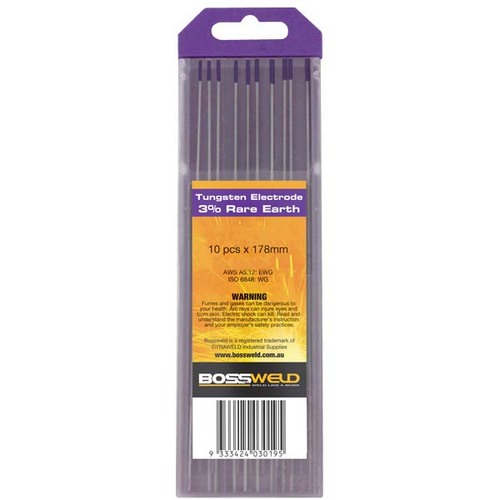

Bossweld 3% Rare Earth Tungsten Electrode 1.6 x 178 mm (Pack of 10) | 900341

Bossweld 3% Rare Earth Tungsten Electrodes are a long-life blend for TIG welding on AC or DC, supplied in packs of 10 at 178 mm long in 1.6, 2.4 and 3.2 mm diameters. The blend gives easy arc striking, smooth arc transfer and a low burn-off rate, and suits all TIG applications.

The blend is non-radioactive (manufacturer-stated), so there is no thorium to manage in the grinding dust. It suits non-alloyed and high-alloyed steel, copper, nickel, aluminium, titanium and magnesium alloys on both AC and DC.

Where this product is used

• AC TIG welding of aluminium and magnesium alloys
• DC TIG welding of steel, stainless steel, copper, nickel and titanium
• Shops that want a non-radioactive alternative to thoriated tungsten

Features

• 3% rare earth blend for easy arc striking and smooth arc transfer
• Low burn-off rate and long life
• Non-radioactive formulation (manufacturer-stated)
• 1.6, 2.4 and 3.2 mm diameters, 178 mm long
• Pack of 10

Key specifications

Selecting the right option

Pick the diameter from your welding current and joint, and check that your torch collet and collet body match it. Smaller diameters suit lower current on thinner material, and larger diameters carry more current. Grind the tip to a taper with the grinding marks running along the length of the electrode, and use a wheel kept for tungsten only so the tip stays clean.

Related products

Other tungsten types: Bossweld Lanthanated Tungsten Electrodes 900301, Bossweld Zirconated Tungsten Electrodes 900320 and Bossweld Ceriated Tungsten Electrodes 900330. Match the electrode diameter to your collet and collet body. For 17, 18 and 26 series TIG torches, see the Bossweld Collet 2.4 mm, 17/18/26 Series (Pack of 5) and Bossweld Collet Body 2.4 mm, 17/18/26 Series (Pack of 5).
