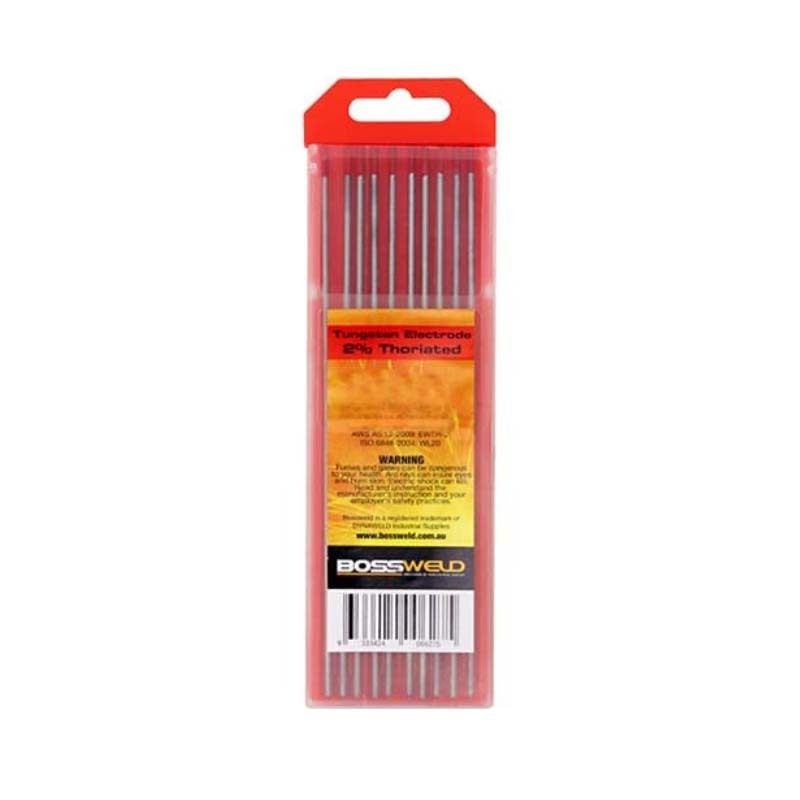

Bossweld 2% Thoriated Tungsten Electrode 1.0 x 178 mm (Pack of 10) | 900310

Bossweld 2% Thoriated Tungsten Electrodes are non-consumable electrodes for DC TIG welding, supplied in packs of 10 at 178 mm long. This listing covers the 1.0, 3.2 and 4.0 mm diameters. The 2% thorium oxide content gives easy arc starting, a stable arc and long electrode life, which is why thoriated tungsten is a common choice for DC work on mild steel and stainless steel.

Thoriated electrodes are used on DC, with the torch on electrode negative. They are not the right choice for AC welding of aluminium. For that job, look at the zirconated, lanthanated or rare earth electrodes. Thoriated tungsten contains thorium oxide, which is weakly radioactive. The risk is mainly from grinding dust, so grind with extraction, keep the dust away from food and drink, and follow the manufacturer's safety data sheet and your site procedures.

Where this product is used

• DC TIG welding of mild steel and stainless steel
• Precision work where a steady, controllable arc matters
• Production and maintenance TIG welding that needs long electrode life

Features

• 2% thorium oxide for easy arc starting and a stable arc
• Long electrode life on DC TIG welding
• 1.0, 3.2 and 4.0 mm diameters, 178 mm long
• Pack of 10

Key specifications

Selecting the right option

Pick the diameter from your welding current and joint, and check that your torch collet and collet body match it. Smaller diameters suit lower current on thinner material, and larger diameters carry more current. Grind the tip to a taper with the grinding marks running along the length of the electrode, and use a wheel kept for tungsten only so the tip stays clean. The 1.6 and 2.4 mm sizes are listed separately as the Bossweld Technology 2% Thoriated Tungsten Electrodes.

Related products

Other tungsten types: Bossweld Technology 2% Thoriated Tungsten Electrodes, Bossweld Ceriated Tungsten Electrodes 900330 and Bossweld Zirconated Tungsten Electrodes 900320. Match the electrode diameter to your collet and collet body. For 17, 18 and 26 series TIG torches, see the Bossweld Collet 2.4 mm, 17/18/26 Series (Pack of 5) and Bossweld Collet Body 2.4 mm, 17/18/26 Series (Pack of 5).
