Description

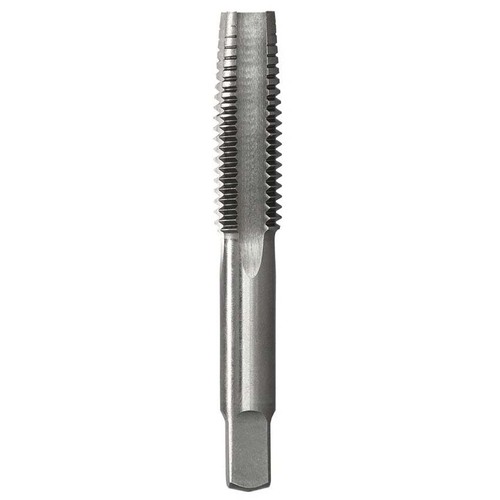

Bordo Metric Fine Taper Chrome Alloy Spark Plug Hand Tap

  • Chrome Alloy Spark Plug (Metric Fine) Taper Hand Tap.
  • Used as thread chasers to clean an existing thread.
  • They can also be used to create a new female thread in non-ferrous metals and plastics.
  • Chrome alloy taps are not suitable for creating precision, safety or critical threads.
  • Metric Fine angle of thread is 60 degrees.
  • The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
  • Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
  • The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
  • Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.

About Taper Taps

  • Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
  • Manufactured from chrome alloy this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

About Metric Coarse & Fine

  • Angle of thread is 60°.
  • The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
  • Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
  • The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).

Specifications

  • AIMS SKU A0195263
  • Brand Bordo
  • Model Number 4222-10.00T
  • Barcode Number 9326518041627
  • Diameter (mm) 10
  • Pitch (mm) 1
  • Drill Diameter (mm) 9
  • Surface Finish Bright
  • Flute Type Straight
  • Overall Length (OL) mm 75
  • Tap Lead Taper
  • Type Hand Tap
  • Thread Form Metric Fine
  • Material Chrome Alloy
  • System Measurement Metric
SKU: A0195263

Bordo 10 x 1mm Metric Fine Taper Chrome Alloy Spark Plug Hand Tap

Bordo Metric Fine Taper Chrome Alloy Spark Plug Hand Tap

$12.78
RRP $22.69
SAVE $9.91 (44%)
