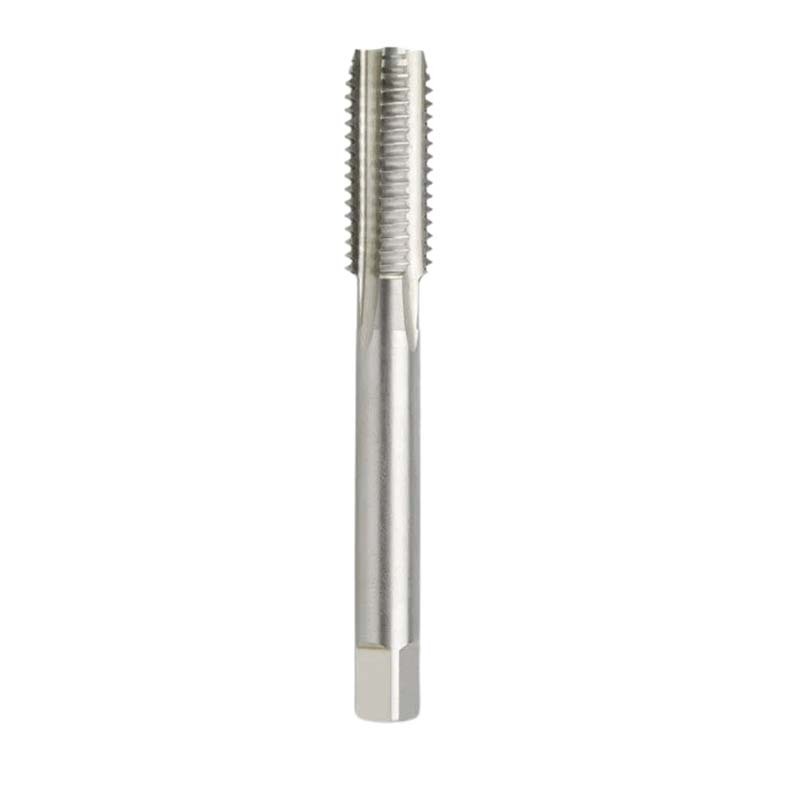

Bordo Metric Coarse Bottoming HSS Hand and Machine Tap

• HSS Metric Coarse Bottoming Hand and Machine Tap.
• Metric Coarse angle of thread is 60 degrees.
• The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
• Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
• The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
• Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
• Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
• Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

About Bottoming Taps

• Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
• Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.

About Metric Coarse & Fine

• Angle of the thread is 60°.
• The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
• A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
• The major diameter of the external thread and pitch are specified by a simple numerical value (most commonly measured in millimeters).
