Bordo HSS Cobalt Metric Coarse Spiral Flute Tap (3220)1

Bordo 3 x 0.5mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-3.00

Bordo 3.5 x 0.6mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-3.50

Bordo 4 x 0.7mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-4.00

Bordo 5 x 0.8mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-5.00

Bordo 6 x 1mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-6.00

Bordo 7 x 1mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-7.00

Bordo 8 x 1.25mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-8.00

Bordo 9 x 1.25mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-9.00

Bordo 10 x 1.5mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-10.00

Bordo 11 x 1.5mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-11.00

Bordo 12 x 1.75mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-12.00

Bordo 14 x 2mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-14.00

Bordo 16 x 2mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-16.00

Bordo 18 x 2.5mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-18.00

Bordo 20 x 2.5mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-20.00

Bordo 22 x 2.5mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-22.00

Bordo 24 x 3mm HSS Cobalt Metric Coarse Spiral Flute Tap - 3220-24.00

Description +

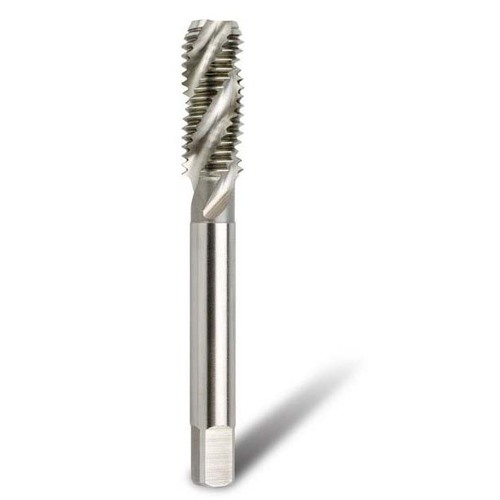

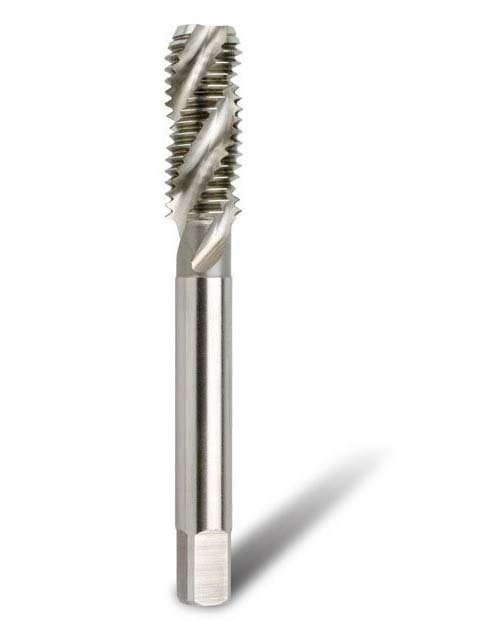

Bordo HSS Cobalt Metric Coarse Spiral Flute Tap (3220)

HSS-Co5 (Cobalt) Metric Coarse Spiral Flute machine tap.
Cobalt HSS taps are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
Spiral Flute taps are designed primarily for machine tapping of blind holes.
They produce the best results in materials that produce long continuous chips.
The right hand spiral forces the swarf out of the hole and prevents the chips from clogging at the bottom of the hole or in the flutes, which could cause tap breakage or spoiled threads.
Metric Coarse taps have a 60° angle of thread.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimeters).

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Bordo HSS Cobalt Metric Coarse Spiral Flute Tap (3220)

SKU: A0203008

Type: Spiral Flute Tap

$112.43

Inc. GST

Available

The Bordo HSS Cobalt Metric Coarse Spiral Flute Tap (3220) by Bordo is a Spiral Flute Tap made of HSS-Co5 (Cobalt) alloyed high speed steel. It offers a 60° angle of thread and is suitable for machine tapping of blind holes.
