Bordo HSS Cobalt Metric Fine Spiral Point Tap (3121)1

Bordo 5 x 0.5mm HSS Cobalt Metric Fine Spiral Point Tap - 3121-5.00

Bordo 6 x 0.75mm HSS Cobalt Metric Fine Spiral Point Tap - 3121-6.00

Bordo 8 x 1mm HSS Cobalt Metric Fine Spiral Point Tap - 3121-8.00

Bordo 10 x 1mm HSS Cobalt Metric Fine Spiral Point Tap - 3122-10.00

Bordo 10 x 1.25mm HSS Cobalt Metric Fine Spiral Point Tap - 3121-10.00

Bordo 12 x 1.5mm HSS Cobalt Metric Fine Spiral Point Tap - 3121-12.00

Description +

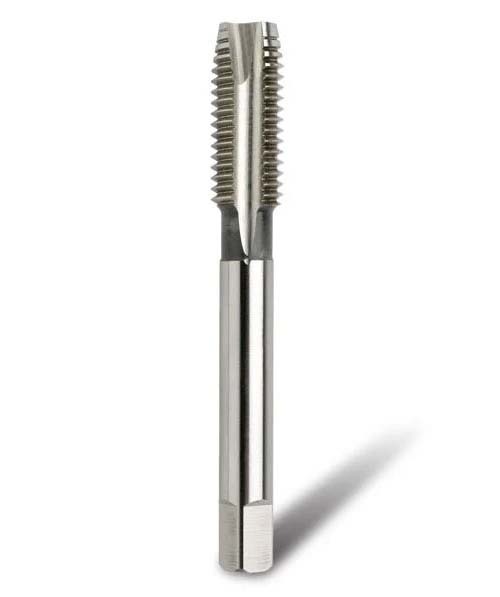

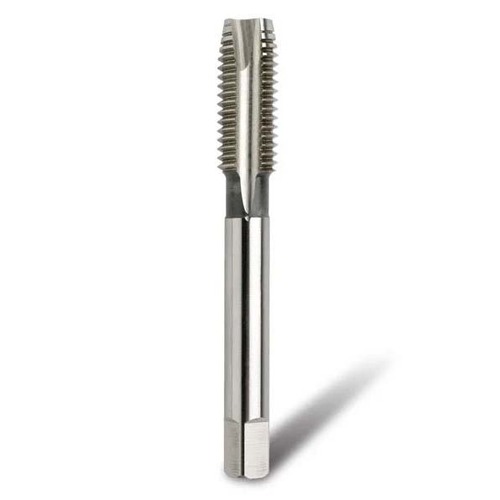

HSS-Co5 (Cobalt) Metric Fine Spiral Point (Gun Nose) machine tap.
Cobalt HSS taps are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
Gun nose taps have straight flutes supplemented by angular cutting faces at the lead.
The design of the cutting portion propels the swarf ahead of the tap leaving the flutes clear for the flow of coolant to the cutting teeth.
Primarily designed for use in through holes, these taps can be used in blind holes provided that there is ample clearance beyond the threaded section to accommodate the swarf.
The advantages of a gun nose tap are the shearing action of the angular cutting faces, which produces a fine finish on the threads and shallower flutes. This allows a stronger cross section throughout the tap.
Metric Fine taps have a 60° angle of thread.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimeters).

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Bordo HSS Cobalt Metric Fine Spiral Point Tap (3121)

SKU: A0203015

$70.29

Inc. GST

Buy It Now

Available

The Bordo HSS Cobalt Metric Fine Spiral Point Tap (3121) by AIMS Industrial Supplies is a 0 HSS-Co5. It provides a 60° angle of thread and is suitable for through holes.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Description +

HSS-Co5 (Cobalt) Metric Fine Spiral Point (Gun Nose) machine tap.
Cobalt HSS taps are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
Gun nose taps have straight flutes supplemented by angular cutting faces at the lead.
The design of the cutting portion propels the swarf ahead of the tap leaving the flutes clear for the flow of coolant to the cutting teeth.
Primarily designed for use in through holes, these taps can be used in blind holes provided that there is ample clearance beyond the threaded section to accommodate the swarf.
The advantages of a gun nose tap are the shearing action of the angular cutting faces, which produces a fine finish on the threads and shallower flutes. This allows a stronger cross section throughout the tap.
Metric Fine taps have a 60° angle of thread.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimeters).
