Bearing Studded Rod End Female Metric Left Hand Thread - SDTZ

Description

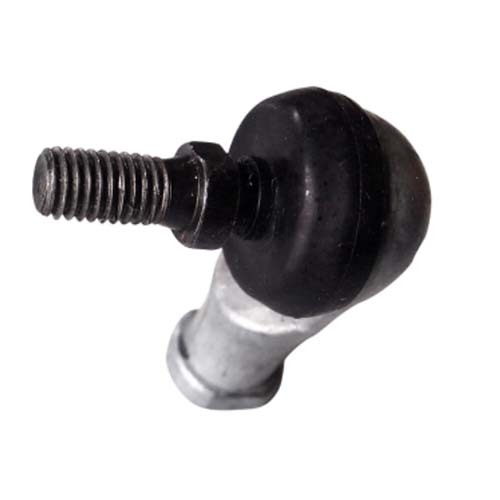

Bearing Studded Rod End Female Metric Left Hand Thread

A ball-joint is a coupling that links two bits of suspension but allows movement between those two in a variety of directions.
SDTZ Ball Studs is an "L" shaped shank with a male left hand thread made up of zinc base alloy and steel.
All Ball Studs are available in either left or right hand thread (Add the suffix "L" for left hand thread).

Specifications

AIMS SKU A0170954

Brand SDTZ

Model Number BL10BDL/SDTZ

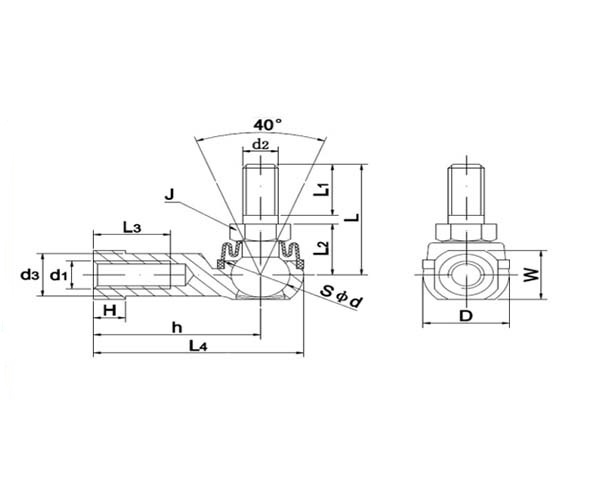

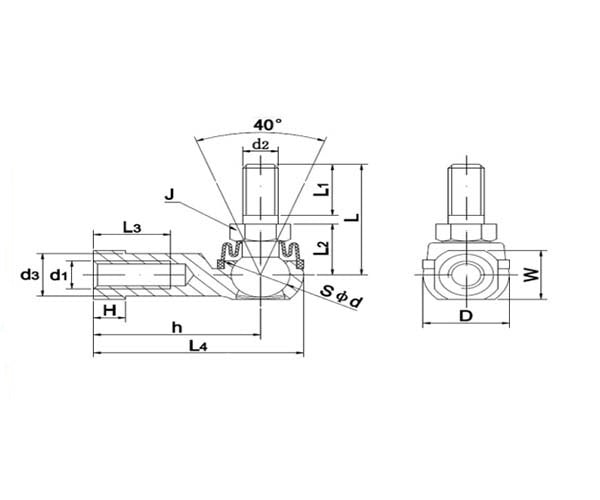

Basic Load Rating (kN) 18.3

d1 (6h) M10 x 1 .5

w (mm) 17

Weight (kg) 0.11

L2 (mm) 17

SΦd 15.88

L1 (min) 21

J (mm) 14

H (mm) 7

L4 (mm) 23

L3 (min) - mm 23

d2 (6g) M10 x 1 .5

Thread Size (mm) M10 x 1 .5

D (mm) 25

D3 (mm) 14.5

Type Studded Rod End
