Description

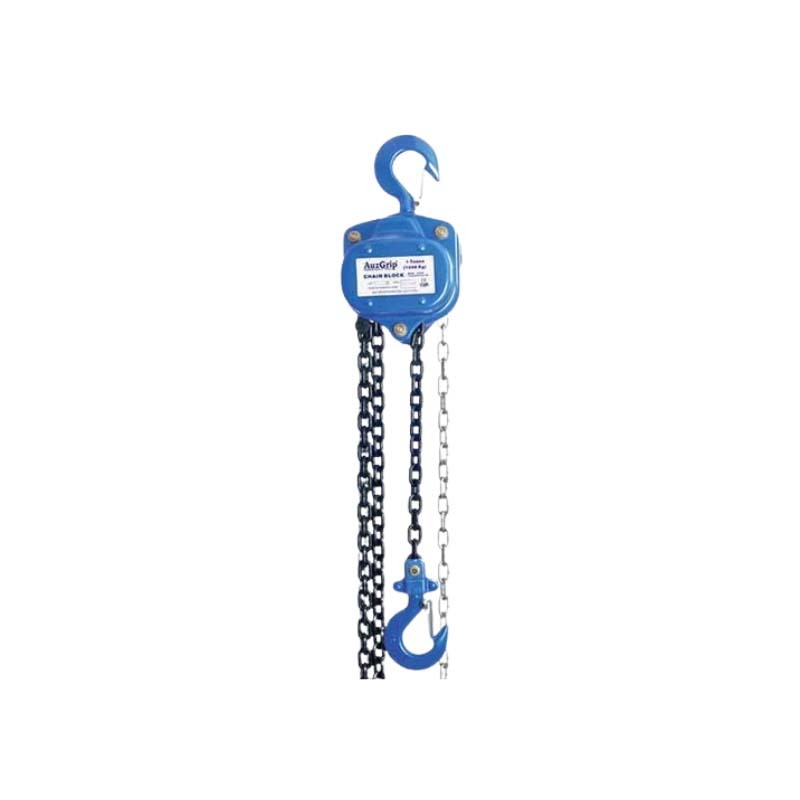

3 Meter Long Industrial Chain Block

  • To safely facilitate the lifting of heavy component objects or materials.
  • Designed to meet and exceed the needs of all industrial, mining, rigging, automotive and marine lifting applications.

Features

  • Manufactured with industrial-strength, impact-resistant, hardened steel frame, and gearcase.
  • Unique 3 spur gear efficiency reduces the required operator effort by 25%.
  • Double guide rollers and pawl enhance safety, performance, and reliability.
  • Asbestos-free friction disc.
  • Fitted with industrial duty caged needle roller bearings.
  • Rated Grade 89 alloy steel load chain compliance to ASO3077 and EN818-7 standards.
  • Load rated, dropped forged, wide throat hooks with cast safety latches and bottom hook assembly 360° rotatable with thrust bearing.
  • Powder-coated finish for corrosion resistance.
  • It can be close-coupled to suitable girder trolley assembly (Grip part no 18145 suitable).
  • Complies to AS/NZ 1418-2 standard and also meets all pertinent world standards.
  • including European EN13157 - Proof tested 1.5 x W.L.L (working load limit ).
  • Individual, serial numbered test certificate supplied.

Specifications

  • AIMS SKU A0123582
  • Brand AuzGrip
  • Model Number A18110
  • Barcode Number 9335319030013
  • Rated Capacity (tonne) 2
  • Rated Capacity (kg) 2000
  • Standard Lift (m) 3
  • Effort Required To Lift Rated Load 335 newtons
  • Working Load WLL (kg) 2000
  • Type Industrial Chain Block
SKU: A0123582

AuzGrip 2Tonne (2,000kg) Capacity 3m Long Industrial Chain Block

Industrial Chain Block

$341.53
