Description

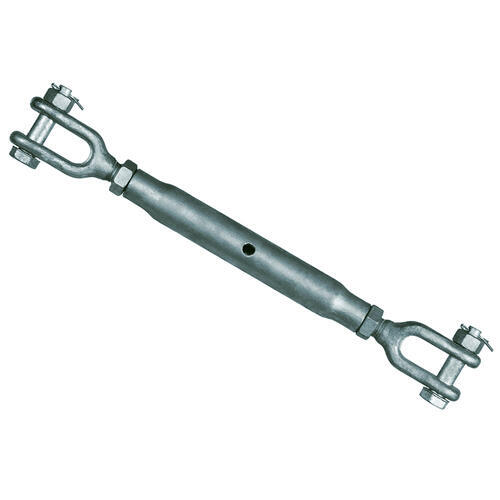

Austlift Rigging Screw Jaw/Jaw Grade P - High Tensile

  • Generally used for straight or in-line tensioning in conjunction with wire rope and or chain assemblies when heavy-duty straining and lifting applications are required.
  • Manufactured from Grade L/P high tensile material quenched and tempered hot-dipped galvanised finish suitable for outdoor use available in metric sizing and jaw end fittings with locknuts.
  • Meets the design requirements of AS2319 Proof tested to 2 x WLL and minimum brake force is 6 x WLL.
  • Suitable for industrial lifting purposes.
  • Individual proof tested.

Specifications

  • AIMS SKU A0168721
  • Brand Austlift
  • Model Number 407020
  • O (Open) (mm) 540
  • D (mm) 34
  • A (mm) 229
  • Size 20 mm
  • N (Close) (mm) 405
  • E (mm) 22
  • C (mm) 204
  • Working Load Limits Wll (t) 2.5
  • F (mm) 16
  • Weight (kg) 2.3
  • Type Rigging Screw
  • Material High Tensile
  • Finish Tempered Hot Dipped Galvanised
  • Grade Grade P
SKU: A0168721

Austlift 20mm Rigging Screw Jaw/Jaw Grade P High Tensile Steel

Austlift Rigging Screw Jaw/Jaw Grade P - High Tensile
