Austlift G80 LE Type Eye Self Locking Hook

Description

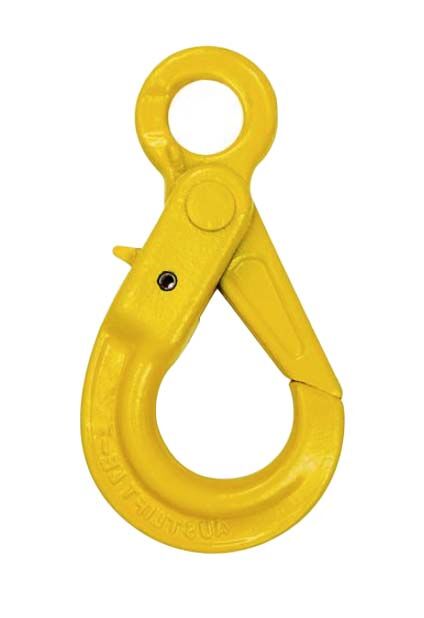

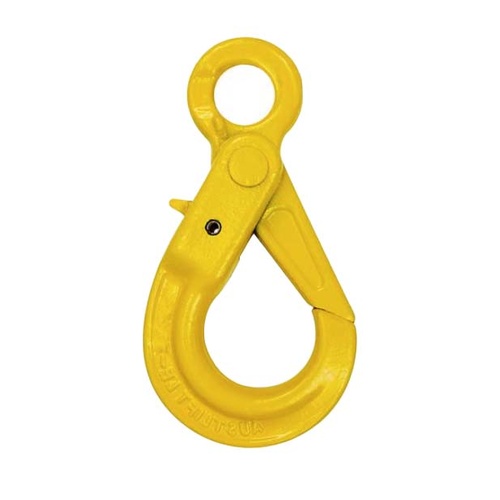

Austlift G80 LE Type Eye Self Locking Hook

Austlift LE type eye self-locking hook allows the hook to remain open until the load is engaged.
The hook will not open until the trigger at the back is pressed.
The eye style allows easy connection to chain connectors, shackles, and wire rope slings.
Marked with chain sizes, batch number, grade, end Austlift branded with manufacture quality mark.
Batch tested, test certificates available upon request.
Spare trigger kits are available.

Specifications

AIMS SKU A0208506

Brand Austlift

Model Number 102320

Barcode Number 9345339005151

Chain Size (mm) 18/20

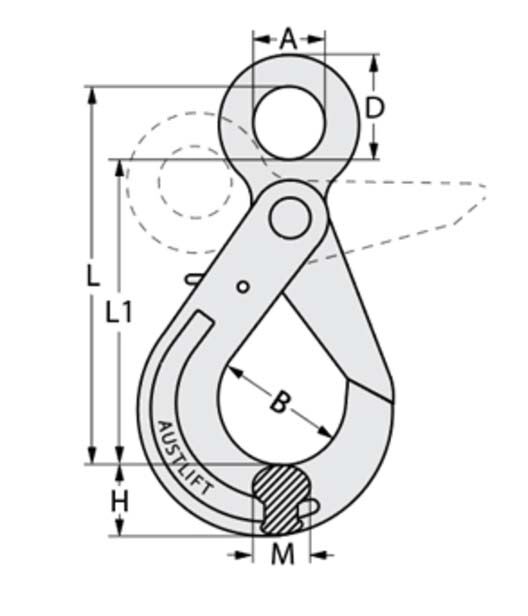

Dimension A (mm) 61

Dimension B (mm) 92

Dimension D (mm) 87.5

Dimension H (mm) 62

Weight (kgs) 7.5

Dimension L (mm) 290

WLL 12.5 T

Dimension L1 (mm) 290

Dimension M (mm) 50

Type Eye Self Locking Hook
Grade G80
