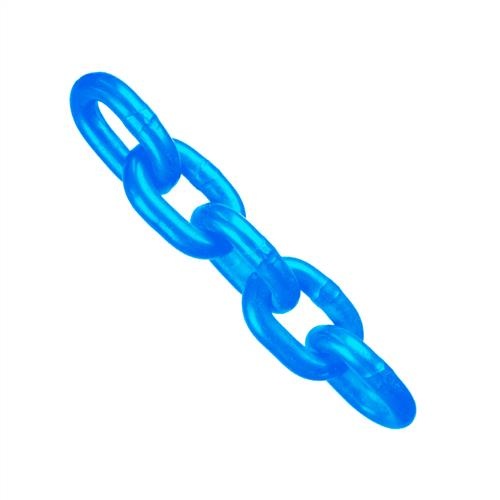

Austlift G100 Chain 8mm Cut Length Per
Available
Austlift G100 Chain Links Cut Per Metre is engineered for crane and lifting assembly work, with traceable Grade L, Grade 80 or Grade 100 strength rated to a working load limit critical to safe lifting. Suited to crane and lifting rigging, mining and quarry chain work, forestry and stevedoring, heavy plant and equipment lifting, and workshop fabrication. Grade L galvanised, Grade 80 and Grade 100 alloy variants suit a range of WLL requirements and service environments. Built to deliver safe, traceable lifting through repeat trade and industrial service.
Where this product is used
- Crane and lifting assembly.
- Mining and construction lifting.
- Forestry and stevedoring chain work.
- Heavy plant and equipment lifting.
Key specifications
| Product Type | Chain |
| Standard(s) | AS 2321 |
Working Load Limit by size
| Size / Variant | WLL |
|---|---|
| 6 | 1.4 T |
| 8 | 2.5 T |
| 10 | 4 T |
| 13 | 6.7 T |
| 16 | 10 T |
| 20 | 16 T |
| 22 | 19 T |
Selecting the right option
Grade and size both drive WLL — a higher grade chain of the same diameter carries a materially higher rated capacity, so check the grade stamped on the chain, not just the size.
