Austlift G100 Alloy Steel Multi Link 16mm - 170116

Description

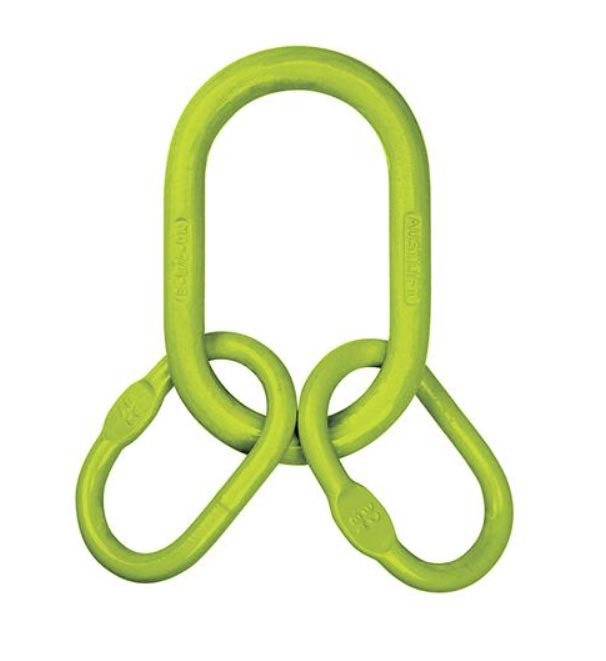

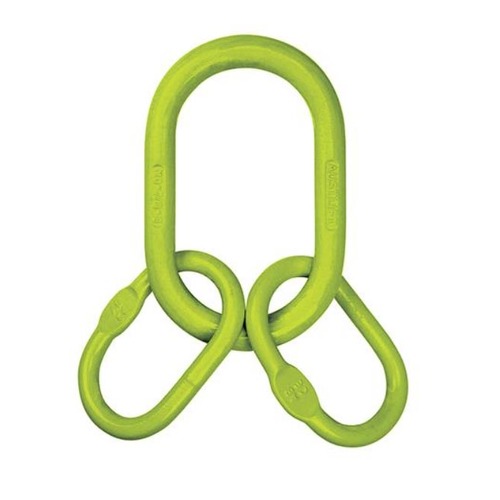

Austlift Master Multi Link G100 Alloy Steel

Master Link Multi (Type MD, with flat)
Austlift MD type G100 multi head rings are designed with a large ring and two intermediate links to cater for two, three and four leg chain slings or wire rope slings applications.
Marked with single and double chain size, designation, grade, manufacture quality mark and Austlift branded.
25% higher work load limit than G80.
Batch tested, test certificates available upon request.
Fatigue tested > 20,000 times.

Note: For 20mm and above, the sub rings are smaller in size.

Specifications

AIMS SKU A0207636

Brand Austlift

Model Number 170116

Barcode Number 9345339007858

Size (mm) 16

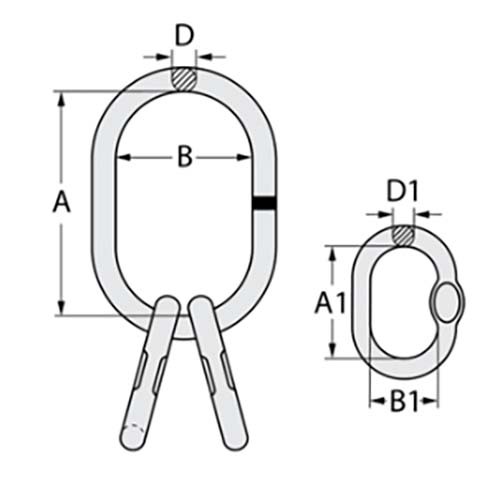

Dimension (mm) A 200

Weight (kgs) 23

WLL 21 T

Dimension (mm) B 300

Dimension (mm) D 50

Dimension (mm) B1 200

Dimension (mm) A1 120

Dimension (mm) D1 32

Type Master Multi Link

Calculate Shipping

Resources

Austlift G100 Chain & Fittings Catalogue
