Description

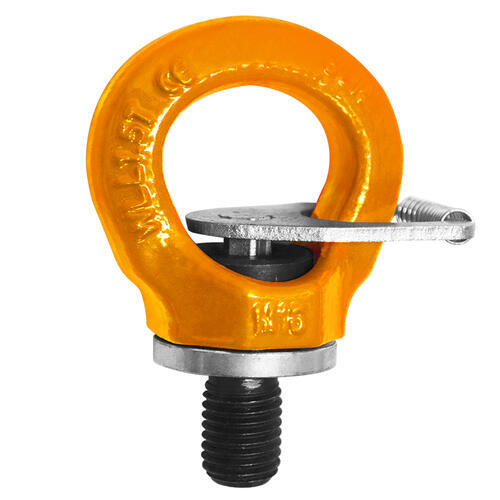

Austlift Eye Bolt Swing

  • Swivel Eye Bolt Points are accordingly to AS2318 for the swivel component.
  • Used as a swiveling load ring able to swivel 360° with a pivot of 90°.
  • Made from G100 alloy steel with Orange painted finish, manufactured with an elongated ring in metric thread sizes 8mm to 20mm.
  • Marked with work load limit in tonne, nominal size in millimetre, quality mark and supplier identification.
  • Designed by forged alloy steel, quenched, and tempered.
  • 360° rotation with 90° pivot function.
  • Rated at 100% at 90° angle.
  • 100% magnaflux crack detection.
  • Test certificate available upon request.

Proof tested in 2 stages:

  1. 1.25 x working load limit with ball bearing included.
  2. Removal of ball bearing that is subject to damages, then 2x working load limit is applied.

Specifications

  • AIMS SKU A0168895
  • Brand Austlift
  • Model Number 605016
  • Size (mm) 16mm
  • 90° WLL (T) 1.5
  • b (mm) 37.5
  • A (mm) 52
  • 90° BL (T) 6
  • 0° WLL (T) 4
  • E (mm) 36
  • C (mm) 63.5
  • 0° BL (T) 16
  • D (mm) 24
  • F (mm) 14
  • Weight (kg) 0.29
  • Type Eye Bolt Swing
SKU: A0168895 On Sale

Austlift Eye Bolt Swing 16mm x 4T WLL

Austlift Eye Bolt Swing

$34.54
$48.03
