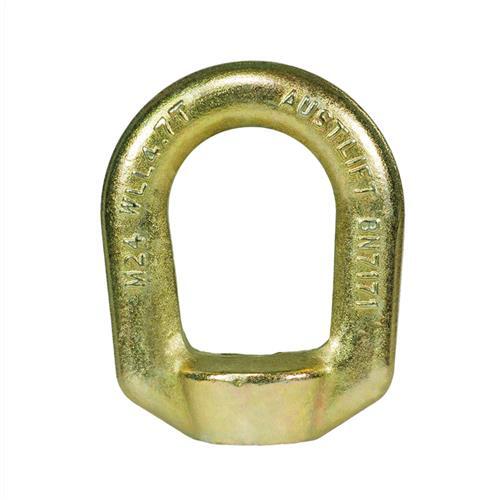

Austlift Bow Eye Nut Zinc Plated

  • Bow nut in accordance with requirements of ASME B30.26 used as a removable hanging eye nut where a rated male thread or bolt can be utilised commonly used in the mining industry.
  • Made from C15 carbon steel and tempered with zinc plated finish, manufactured with a bow shape, available in metric thread sizes only.
  • Marked with working load limit in tonne, nominal size in millimetre, batch number, and supplier identification.
  • Proof tested to 2 x working load limit and minimum breaking force of 5 x working load limit.


Size (mm) WLL (T) Weight (kg) D (mm) D2 (mm) D3(mm) H (mm) H1 (mm) W (mm) W1 (mm)
M24 4.7 1.18 24 46 21 125 75 98 53


  • AIMS SKU A0168981
  • Brand Austlift
  • Model Number 602035
  • Type Clevis Claw Hook
  • Grade 70
SKU: A0168981

Austlift Bow Eye Nut Zinc Plated M24 x 4.7T WLL

Austlift Bow Eye Nut Zinc Plated
