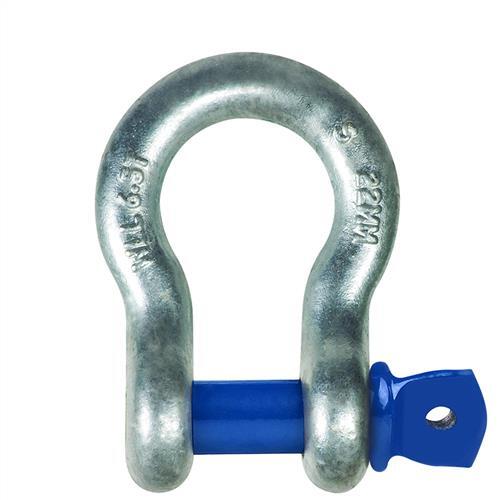

***Screw Pin colour may change. Image is for illustration purposes only.***

Austlift Blue Screw Pin Bow Shackle Grade S Galvanised

  • Grade S Shackle (Bow Type, Blue Screw Pin).
  • Austlift blue screw pin bow shackles are most commonly used for lifting applications, providing connections to chain, wire rope, and other rated fittings within the marine, agricultural, mining, and engineering industries.
  • Conforms to AS2741 manufactured from Grade S material in bow configuration with screw pin hot-dipped galvanised.
  • Marked with working load limit in T, quality grade, batch numbered, nominal size in mm, and supplier identification.
  • Proof tested to 2 x working load limit, with a minimum break force of 6 x working load limit.
  • Test certificates are available upon request. Also available in black color in all sizes upon request.
  • Suitable for lifting applications.


  • AIMS SKU A0168781
  • Brand Austlift
  • Model Number 503005
  • Size (mm) 5
  • Finish Hot Dipped Galvanised
  • Working Load Limits Wll (t) 0.33
  • D (mm) 5
  • Weight (kg) 0.02
  • L (mm) 22
  • b (mm) 15
  • Grade Grade S
  • w (mm) 10
  • E (mm) 14
  • Type Bow Shackle Screw Pin
SKU: A0168781

Austlift Screw Pin Bow Shackle Grade S Hot Dipped Galvanised 5mm

Austlift Screw Pin Bow Shackle Grade S Galvanised

5/5 based on 1 review.
See all reviews

Choose a different size/variant

Calculate Shipping

Browse other products under


Browse other products by




"Shackles were within exact spec, my job required these to fit within the millimeter and they did"
