***Safety Pin colour may change. Image is for illustration purposes only.***

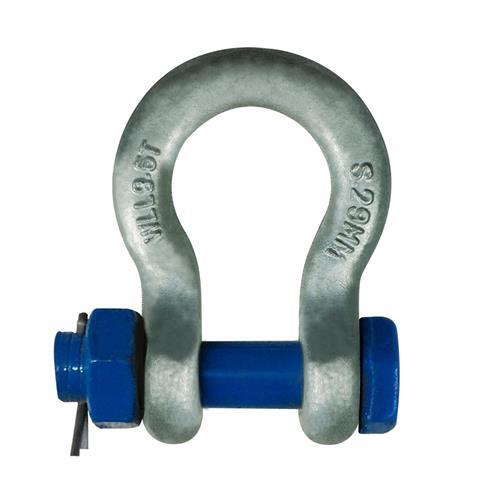

Austlift Blue Safety Pin Bow Crosby Shackle Grade S

  • A Crosby shackle type G2130 not AS type.
  • Austlift blue safety pin bow shackles are most commonly used for lifting applications, providing more permanent connections to chain, wire rope, and other rated fittings within the marine, agricultural, mining, and engineering industries.
  • Suitable for equipment that may vibrate to ensure the pin will not dislodge during use.
  • The safety pin allows the pin to rotate during loading conditions.
  • Manufactured from Grade S material in bow configuration with safety pin hot-dipped galvanised.
  • Marked with working load limit in tonnes, quality grade, batch numbered, nominal size in milliMetre, and supplier identification.
  • Proof tested to 2 x working load limit, with a minimum break force of 6 x working load limit.
  • Suitable for lifting applications.

Note: 503589 & 503590 are crosby shackle type G2130 not AS type.


  • AIMS SKU A0168815
  • Brand Austlift
  • Model Number 503589
  • Size (mm) 89
  • Finish Hot Dipped Galvanised
  • Working Load Limits Wll (t) 120
  • D (mm) 89
  • Weight (kg) 129.31
  • L (mm) 381
  • b (mm) 241
  • Grade Grade S
  • w (mm) 133.5
  • E (mm) 203
  • Type Bow Shackle Safety Pin
SKU: A0168815

Austlift Safety Pin Bow Crosby Shackle Grade S Galvanised 89mm

Austlift Safety Pin Bow Crosby Shackle Grade S
