Austlift Rigging Screw Grade S Eye/Jaw 20mm x 3.2T WLL

Description

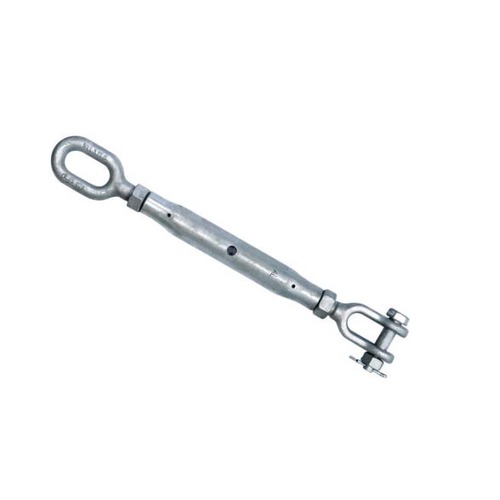

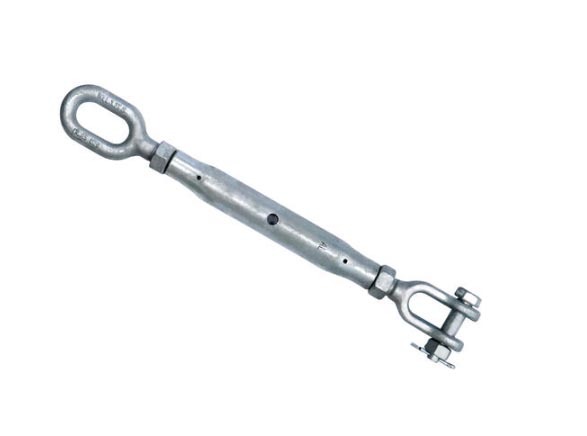

Austlift Rigging Screw Grade S Eye/Jaw

Generally used for straight or in line tensioning in conjunction with wire rope and or chain assemblies when heavy duty straining and lifting applications are required.
Manufactured from Grade S high tensile material quenched and tempered hot dipped galvanised finish , suitable for outdoor use, available in metric sizing.
Meets the design requirements of AS2319 Proof tested to 2 x WLL and minimum break force is 6 x WLL.
Suitable for industrial lifting purposes.
Individual proof tested.

Specifications

AIMS SKU A0168978

Brand Austlift

Model Number 407220

Size 20 mm

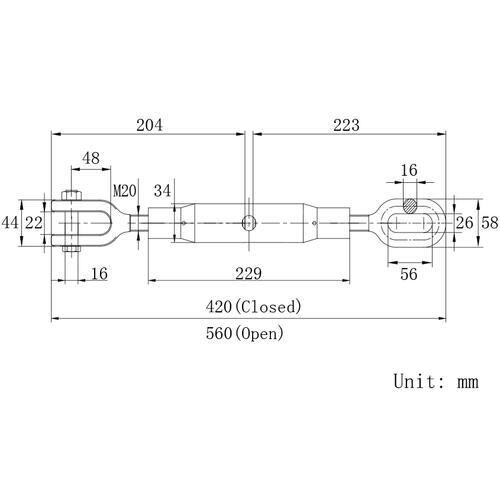

Dimension A (mm) 229

Dimension D (mm) 34

Dimension E (mm) 22

Dimension F (mm) 16

Dimension G (mm) 22

Dimension H (mm) 54

Dimension I (mm) 50

Weight (kgs) 2.1

WLL 3.2T

Dimension J (mm) 16

Dimension N (mm) 420

Dimension C1 (mm) 204

Dimension C2 (mm) 223

Dimension O (mm) 560

Type Rigging Screw
