Asada SD89110 Dies Metric Conduit 16-20mm
Available

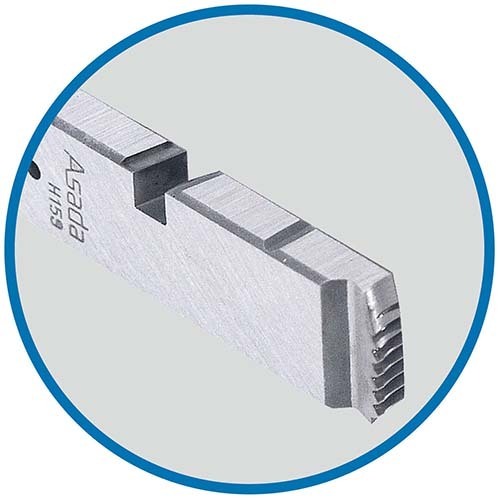

Asada alloy metric conduit threading dies, supplied by size. They are made from special pre heat-treated steel for long life and easy threading.
The life of the dies is greatly affected by the quality of cutting oil used, so Asada Threading Oil is strongly recommended. Alloy dies are for general purpose threading, such as black or galvanised pipe and rod.
Where this product is used
- General purpose threading, such as black or galvanised pipe and rod.
Features
- Made from special pre heat-treated steel for long life and easy threading
- Alloy: for general purpose threading, such as black or galvanised pipe and rod
- 3 sizes available: 16-20mm, 25-32mm and 40-63mm
- Asada Threading Oil strongly recommended, as cutting oil quality greatly affects die life
Key specifications
| Model | Size (mm) | Pitch (mm) |
|---|---|---|
| SD89110 | 16 to 20 | 1.5 |
| SD89111 | 25 to 32 | 1.5 |
| SD89209 | 40 to 63 | - |
Pitch is not listed for the 40 to 63 mm model.
Selecting the right option
Choose the die by thread type (metric conduit) and the size you thread. For stainless and high tensile steels choose HSS dies. Use Asada Threading Oil, Standard Grade or Asada Neat Threading Oil, High Grade to extend die life.
Related products
See the Asada BTM25 rod/bolt threading machine and the Asada pipe and bolt threading machines.
