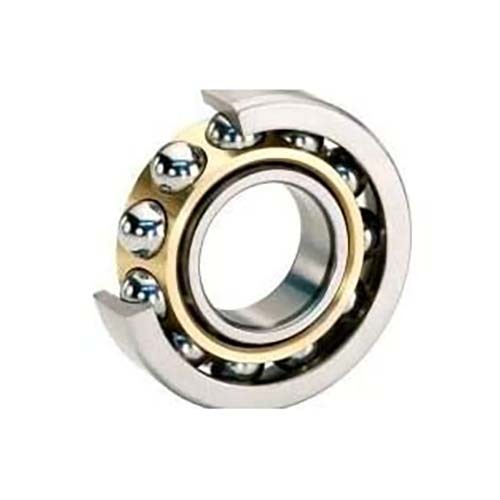

Angular Contact Ball Bearing Open

  • Open type.

All About Angular Contact Ball Bearings

  • Angular contact ball bearing supporting combined radial and bidirectional thrust loads ball contact angle of 20 degrees relative to the inner and outer raceways increases thrust load capacity steel shields on both sides of the bearing to keep lubricant in and contaminants out.
  • Pressed steel cage evenly spaces balls for reduced friction, vibration, and noise Normal axial internal clearance for applications where thermal expansion is not a factor.

Specifications

  • AIMS SKU A0156799
  • Brand IJK
  • Model Number 5202/IJK
  • Bore Diameter (mm) 15
  • Width (mm) 15.9
  • Ball Size 5.953
  • Outer Diameter (mm) 35
  • Load Rating Static C(kgf)/(ibf) 715
  • Balls Number 14
  • Load Rating Dynamic C(kgf)/(ibf) 1190
  • Chamfer R(min) 0.6
  • Type Self Aligning Bearings
  • Series 5200
SKU: A0156799 On Sale

IJK 5202 Angular Contact Ball Bearing Open 15 x 35 x 15.9mm

Angular Contact Ball Bearing Open

$12.97
$25.93
