Description

Angular Contact Ball Bearing 2RS (with Seals) Metric

  • Metric.
  • 2RS (with seals).

All About Angular Contact Ball Bearings

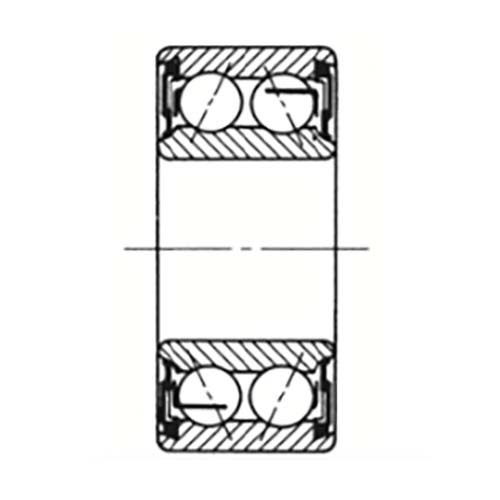

  • Angular contact ball bearing supporting combined radial and bidirectional thrust loads ball contact angle of 20 degrees relative to the inner and outer raceways increases thrust load capacity steel shields on both sides of the bearing to keep lubricant in and contaminants out.
  • Pressed steel cage evenly spaces balls for reduced friction, vibration, and noise Normal axial internal clearance for applications where thermal expansion is not a factor.

Specifications

  • AIMS SKU A0156767
  • Brand JAF
  • Model Number 5207-2RS/JAF
  • Bore Diameter (mm) 35
  • Width (mm) 27
  • Load Rating (kgf) Cor 2400
  • Outer Diameter (mm) 72
  • Load Rating (kgf) Cr 3100
  • Limiting Speed (r.p.m) 5500
  • Type Angular Contact Bearings
  • Series 5200
SKU: A0156767 On Sale

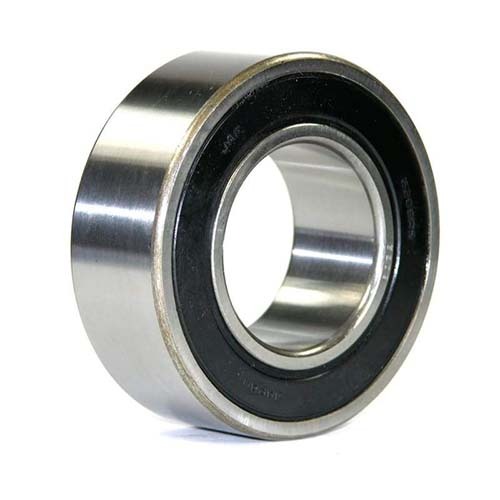

JAF 5207-2RS Angular Contact Ball Bearing 2RS Metric 35 x 72 x 27mm

Angular Contact Ball Bearing 2RS (with Seals) Metric

$42.85
$85.70
