Specifications

AIMS SKU A0158654
Brand Agri-Power
Model Number 50H-1/AGRI-POWER
Chain Number 50H
Ultimate Tensile Strength (lb) 5045

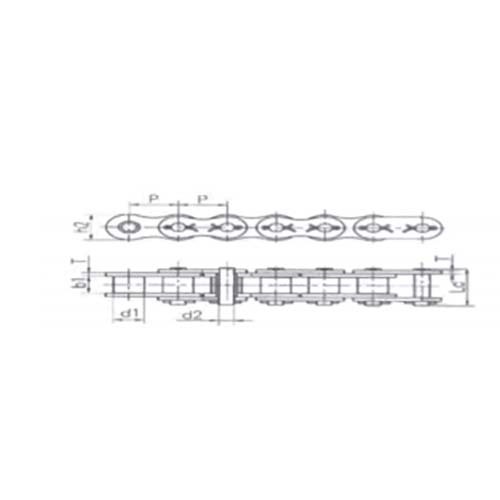

Inner Plate Depth h2 max (mm) 15.09
Width Between Inner Plates b1 min (mm) 9.4
Chain Length 10 ft
Ultimate Tensile Strength (kN) 22.2
Pin Length L Max (mm) 24.4
Roller Diameter D1 Max (mm) 10.16
Chain Pitch 5/8 in
Weight Per Meter (kg/m) 1.25
Plate Thickness T max (mm) 2.42
Pin Diameter d2 max (mm) 5.08
Pitch P (mm) 15.875
Average Tensile Strength (kN) 30.2

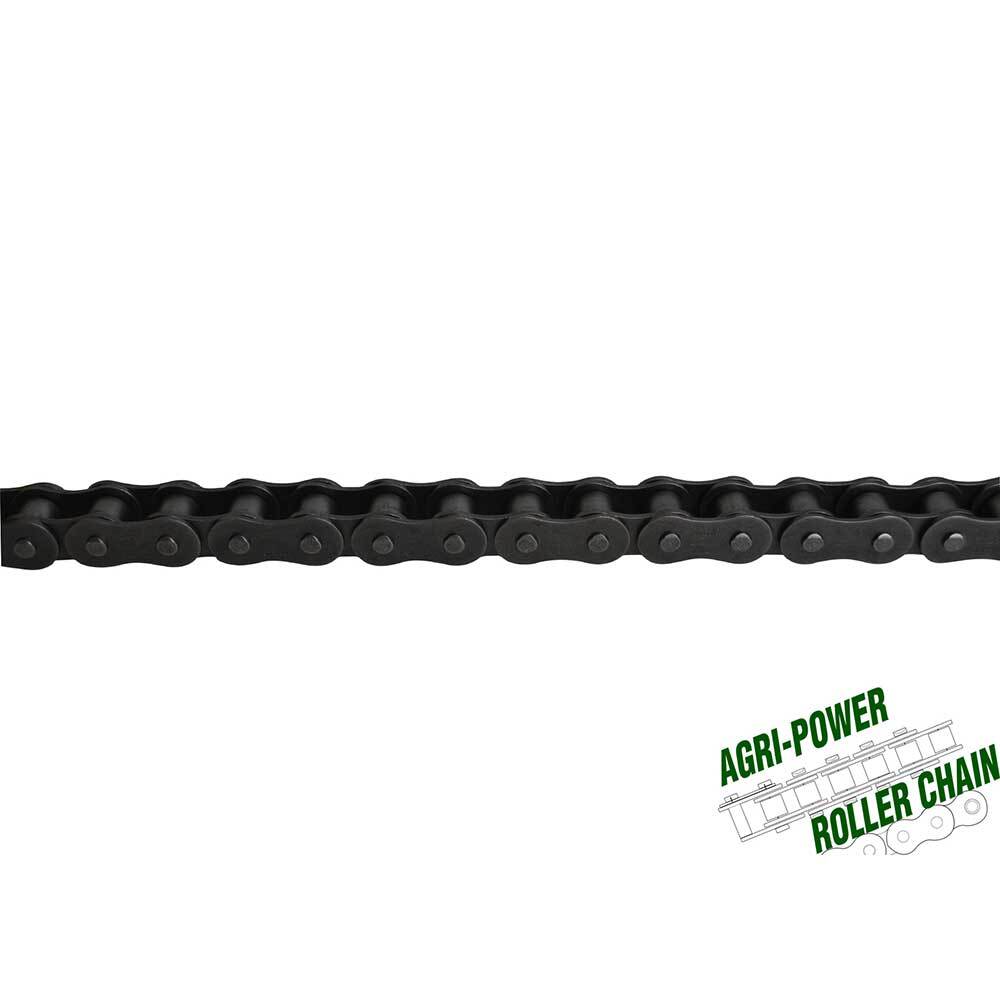

• Type Roller Chain
• System of Measurement American (ASA)
• Strand Simplex
