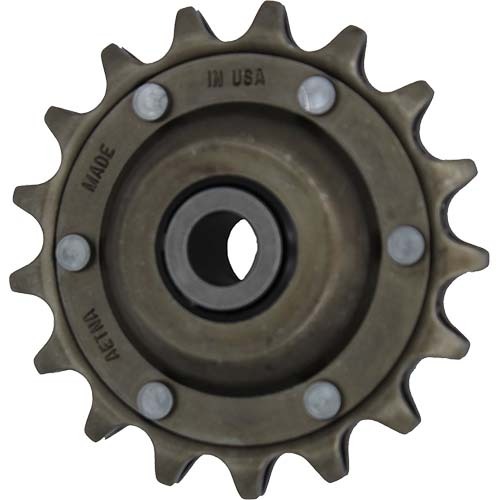

Aetna Single Pitch Idler Sprocket 3/4" Pitch 15 Tooth x 1/2" Bore - AG2417-A
Available
Aetna Single Pitch Idler Sprocket, 15, 17 and 18 Tooth: 5 sizes in this listing (AG2318-A, AG2416-A, AG2417-A, AG2416 and AG2417), 15, 17 and 18 teeth, chain numbers 40 or 41, 50 and 60.
Aetna single pitch chain idler sprockets for roller chain, listed by chain number. The teeth are accurately contoured and hardened to resist wear and damage to the chain, and the idler is compact and easy to install on standard 1/2 in or 5/8 in bolts.
Aetna is a brand of Aetna Bearing Company, based in Livonia, Michigan, USA.
Where this product is used
- Roller chain drives that need a tensioner or a direction change
- Agricultural and general machinery
- General workshop and maintenance replacement of worn chain idlers
Features
- Case-hardened teeth prolong chain and idler life
- Accurately contoured teeth cut from heavy gauge steel
- Oversize factory-packed lubricant chamber, so no relubrication is needed
- Hardened bearing races, with accurately formed outer and inner rings for smooth running
- Self-contouring, free-running, self-wiping seal that keeps positive contact when the idler is misaligned
- Full ball complement for durability
- Aetna single pitch idler sprockets from AIMS Industrial, Sydney, with Australia-wide delivery
Key specifications
| Specification | Detail |
|---|---|
| Brand | Aetna |
| Product type | Single Pitch Idler Sprocket |
| Chain number | 40 or 41, 50 and 60 |
| Pitch | 1/2 in (12.70 mm), 5/8 in (15.88 mm) and 3/4 in (19.05 mm) |
| Number of teeth | 15, 17 and 18 |
| Outside diameter range | 3-1/16 to 3-29/32 in |
| Nominal bore | 1/2 in and 5/8 in |
| Model codes | AG2318-A, AG2416-A, AG2417-A, AG2416 and AG2417 |
| Sizes in this listing | 5 |
Available sizes
| Model | SKU | Chain no. | Pitch, in (mm) | Teeth | Bore, in | OD, in (mm) | Weight |
|---|---|---|---|---|---|---|---|
| AG2318-A | A0150801 | 40 or 41 | 1/2 (12.70) | 18 | 0.516 to 0.522 | 3-1/16 (77.787) | 0.45 lb (0.204 kg) |
| AG2416-A | A0150803 | 50 | 5/8 (15.88) | 17 | 0.516 to 0.522 | 3-5/8 (92.075) | 0.77 lb (0.349 kg) |
| AG2417-A | A0150805 | 60 | 3/4 (19.05) | 15 | 0.516 to 0.522 | 3-5/8 (92.075) | 0.83 lb (0.376 kg) |
| AG2416 | A0150802 | 50 | 5/8 (15.88) | 17 | 0.643 to 0.649 | 3-5/8 (92.075) | 0.74 lb (0.335 kg) |
| AG2417 | A0150804 | 60 | 3/4 (19.05) | 15 | 0.643 to 0.649 | 3-29/32 (99.218) | 0.80 lb (0.362 kg) |
Model codes are the supplier's part numbers; the SKU is the AIMS part number. Dimensions are in inches with millimetres in brackets, as published in the supplier's catalogue.
Selecting the right option
An idler sprocket must match the chain it runs on. Match the chain number and the pitch, then the number of teeth and the bore for the bolt or shaft it mounts on.
The model codes, chain numbers, pitches and dimensions for each size are in the sizes table.

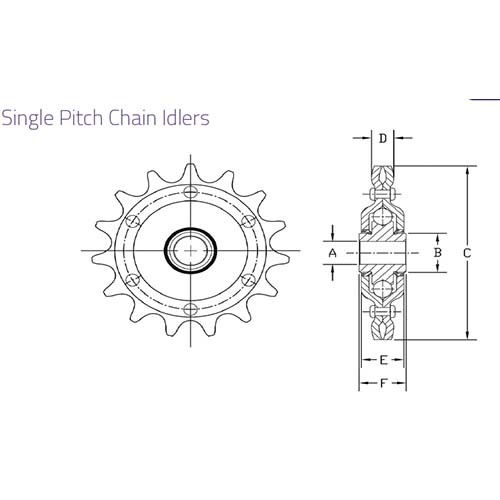

Measurements follow the catalogue drawing: A is the bore, B the hub diameter, C the outside diameter, D the tooth width.
If the size you need is not listed, send AIMS the chain number and the bore and we will check what is available.
The catalogue page for this product, with its dimension drawing, can be downloaded from the Catalogue section of this page. Dimensions are as published in the supplier's catalogue.
Fitting and use
Check the chain number and pitch of your chain against the table before ordering, and fit the idler on a bolt that matches the bore.
Line the idler up with the chain path so the chain runs square on the teeth, and set chain tension to the drive manufacturer's figure.
The bearing is sealed and lubricated at the factory. Keep water, grit and solvents away from the seals, and replace the idler if the bearing runs rough or noisy.
Related products
Related idlers: Aetna 5/8" Pitch 17 Tooth Single Pitch Idler Sprocket 1/2" Bore - AG2416-AP, Aetna Single Pitch Idler Sprocket - Extra Heavy Gauge Steel, 15 and 17 Tooth, Aetna Single Pitch Idler Sprocket - Yellow Zinc Plated, 15 and 17 Tooth, Aetna 1-1/4" Pitch 9 Tooth Double Pitch Idler Sprocket 5/8" Bore - AG2416-B and Aetna 1-1/2" Pitch 8 Tooth Heavy Duty Double Pitch Idler Sprocket 5/8" Bore - AG2427. See the full range in Sprockets and Chain Idlers & Accessories.
