Description

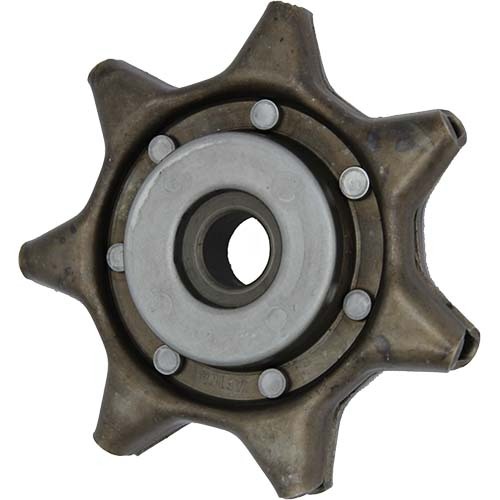

Aetna Detachable Link Idler Sprocket (Includes Felt & Slinger Seal)

  • Detachable Chain Idler.
  • Includes Felt & Slinger Seal.

All About Sprocket Idler

  • These sprocket idlers are designed for agricultural detachable link chains.
  • They are installed with standard 1/2" or 5/8" bolts and include accurately contoured hardened teeth to resist wear and damage to the chain.
  • Aetna idlers are compact and easy to install and built for long maintenance-free service life.

Advantages

  • Case hardened teeth prolong chain and idler life.
  • Accurately contoured teeth from heavy-gauge steel
  • Over-size, factory-packed lubricant chamber assures maximum life and operating efficiency without troublesome relubrication.
  • Bearing races are hardened to resist wear, outers and inners are accurately formed for smooth running.
  • Aetna's self-contouring, free-running, self-wiping seal provides positive contact under all conditions of misalignment.
  • Full ball complement for high durability.

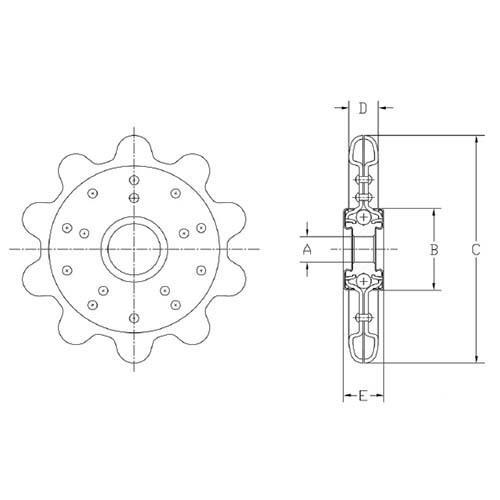

Specifications

  • AIMS SKU A0150897
  • Brand Aetna
  • Model Number AG2422-1AF
  • Type Idler Sprocket
  • Inside Diameter (inch) 5/8
  • E (mm) 23.018
  • a (inch) .643/.649
  • Teeth 7
  • Roller Diameter (mm) 17.018/17.242
  • Roller Diameter (inch) .670 / .686
  • Weight (lbs) 1.43
  • D (mm) 19.05
  • F (mm) 0
  • C (inch) 4-29/64
  • Weight (kg) 0.6486
  • E (inch) 29/32
  • Chain No 62,62H
  • B (inch) 1-13/32
  • b (mm) 35.718
  • A (mm) 16.332/16.484
  • C (mm) 113.109
  • Item Type Detatchable Chain Idlers - Sprocket Idler
  • D (inch) 3/4
  • Pitch 1.654
SKU: A0150897

Aetna 41.4mm Pitch 7 Tooth 5/8" ID Detachable Link Idler Sprocket

Aetna Detachable Link Idler Sprocket

$127.85
