1/8 in (6 mm) Galvanised Square Head Plug | LP06
Available
This AAP galvanised malleable iron square head plug is a hot dip galvanised fitting with BSP threads. It is supplied in 13 sizes, 1/8 in (6 mm) to 6 in (150 mm).

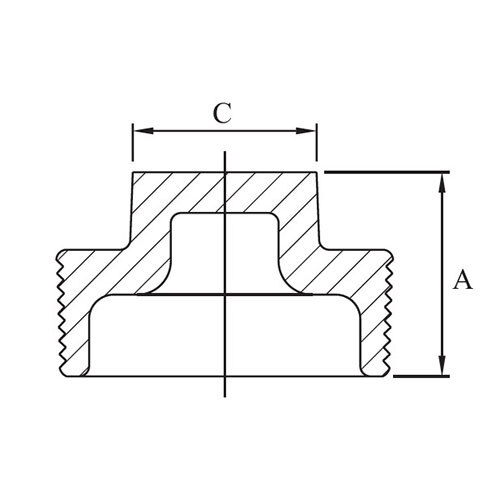

A plug closes a female threaded port. This one is threaded on the outside (male) and has a square head for a spanner. A is the length and C the width of the square head, as lettered on the AAP drawing.
AAP states that these fittings are made to EN 10242:1994 (manufacturer-stated), in blackheart malleable cast iron and delivered hot dip galvanised (manufacturer-stated). AAP states that each fitting is pressure tested to EN 10242 at a minimum hydrostatic pressure of 2068 kPa (equivalent to a minimum pneumatic pressure of 500 kPa) without leakage (manufacturer-stated). AAP recommends a maximum working pressure of 1379 kPa for water and 1034 kPa for gas, steam and compressed air (manufacturer-stated). Working pressures may also be limited by pressure piping codes or industry regulations, so confirm the pressure and temperature for your application with AIMS before you order.
Where this product is used
- Closing an unused female threaded port
- Blanking off the end of a threaded fitting
- Water, gas, steam and compressed air lines within AAP's stated ratings
Features
- 13 sizes, 1/8 in (6 mm) to 6 in (150 mm)
- Malleable iron, hot dip galvanised, EN 10242:1994 (manufacturer-stated)
- BSP threads
- Test pressure 2068 kPa (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Galvanised malleable iron square head plug |
| Finish | Hot dip galvanised, as prescribed by EN 10242 (manufacturer-stated) |
| Material | Blackheart malleable cast iron to ASTM A197 and ASTM A47, hot dip galvanised (manufacturer-stated) |
| Thread | BSP (British Standard Pipe) thread: parallel internal (Rp) and taper external (R), cut to AS 1722.1 and ISO 7-1 (manufacturer-stated) |
| Ends | Male (external) thread, square head |
| Applicable standard (manufacturer-stated) | EN 10242:1994, threaded pipe fittings in malleable cast iron (manufacturer-stated) |
| Dimensions (manufacturer-stated) | AAP lists its dimensions to BS EN 10242, BS 143 and BS 1256 (manufacturer-stated) |
| Recommended working pressure (manufacturer-stated) | 1379 kPa water; 1034 kPa gas, steam and compressed air |
| Test pressure (manufacturer-stated) | 2068 kPa hydrostatic (equivalent to 500 kPa pneumatic minimum) |
| Sizes | 1/8 in (6 mm) to 6 in (150 mm) (13 sizes) |
Options and part numbers
| Size | Part number | Length A (mm) | Square head C (mm) | Weight (kg) |
|---|---|---|---|---|
| 1/8 in (6 mm) | LP06 | 15.9 | 7.1 | 0.01 |
| 1/4 in (8 mm) | LP08 | 18.7 | 9.5 | 0.02 |
| 3/8 in (10 mm) | LP10 | 20.6 | 11 | 0.02 |
| 1/2 in (15 mm) | LP15 | 24.4 | 14.3 | 0.04 |
| 3/4 in (20 mm) | LP20 | 27.7 | 15.9 | 0.06 |
| 1 in (25 mm) | LP25 | 31.8 | 20.9 | 0.1 |
| 1-1/4 in (32 mm) | LP32 | 35.1 | 23.8 | 0.15 |
| 1-1/2 in (40 mm) | LP40 | 37.5 | 28.6 | 0.19 |
| 2 in (50 mm) | LP50 | 40.5 | 33.3 | 0.31 |
| 2-1/2 in (65 mm) | LP65 | 50.8 | 38.1 | 0.41 |
| 3 in (80 mm) | LP80 | 49.7 | 42.9 | 0.76 |
| 4 in (100 mm) | LP94 | 56.4 | 58 | 1.37 |
| 6 in (150 mm) | LP96 | 67.4 | 77 | 5.18 |
A is the length and C the width of the square head, as lettered on the AAP drawing, in millimetres. Weights are approximate, in kilograms per piece.
Selecting the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related products
See also AAP Galvanised Malleable Iron Cap, AAP Galvanised Malleable Iron Hexagon Bush, AAP Galvanised Malleable Iron Socket and AAP Galvanised Malleable Iron Hexagon Nipple.
