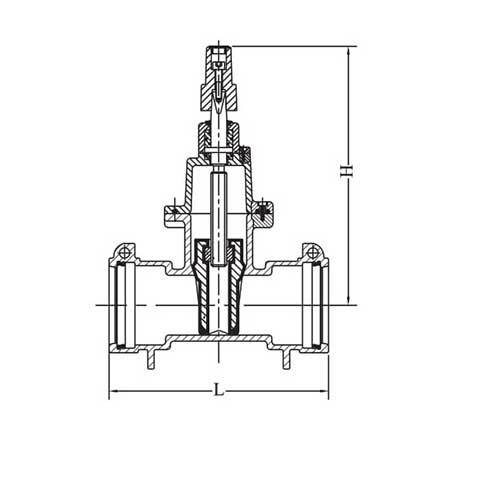

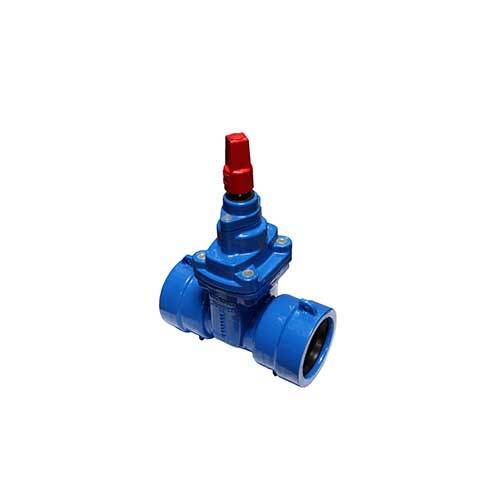

AAP Resilient Gate Valve Clockwise Socket End

Materials

• Body - Ductile Iron (epoxy resin coating)
• Bonnet - Ductile Iron (epoxy resin coating)
• Wedge - Ductile Iron (bonded Rubber)
• Stem - 431 Stainless Steel
• O'Ring - EPDM
• Seal Bushing - EPDM

About Resilient Seat Gate Valves

• certified to AS/NZS:2638:2011
• AAP Standards Mark License - SMKP20171.4 This license covers DN80-DN600 valves
• certified to AS4020 - Suitable for contact with drinking water WSAA Product Appraisal Report 11/26
• Sydney Water Approval - No. 200808
• Yarra Valley Water Authorisation - Ref. YVW 12/11 City West Water CWW 12/596
• South East Water SEW 12/0117
• Hunter Water Corporation HWC 2012-35/49/1
• The Valves are distinguished by Whitecap for Anticlockwise and Redcap for Clockwise
• For buried applications is recommended installation complies with Australian Standard - AS/NZS 2566.2
• N.B DN50 and DN65 are not covered by AS2638.2

Specifications

• Max Working Temperature - 40°C
• Cold Working Pressure - 1600kPa
• Design - AS2638.2*
• flanged Drilling T/C - AS4087
• flanged Drilling T/E - AS2129
• Socket Ends - AS2280
• Coating Thickness - AS4158

Applications:

• Water, sewage and neutral liquid applications
